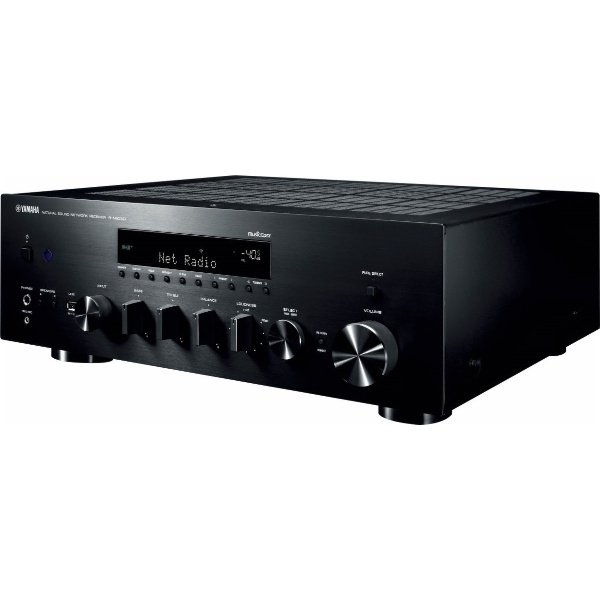

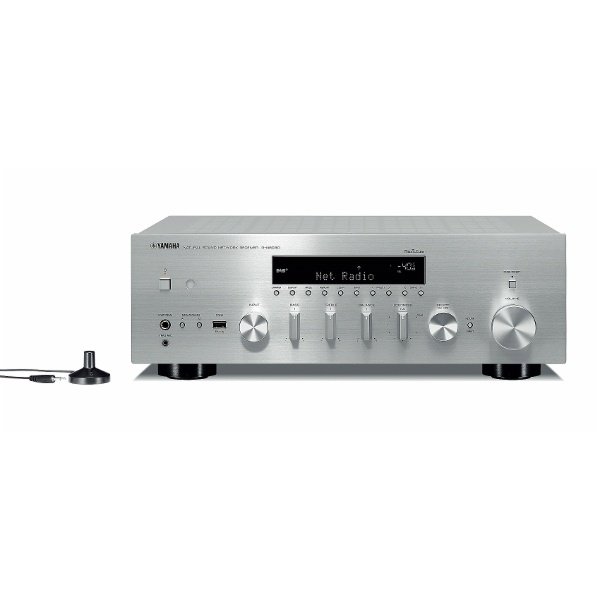

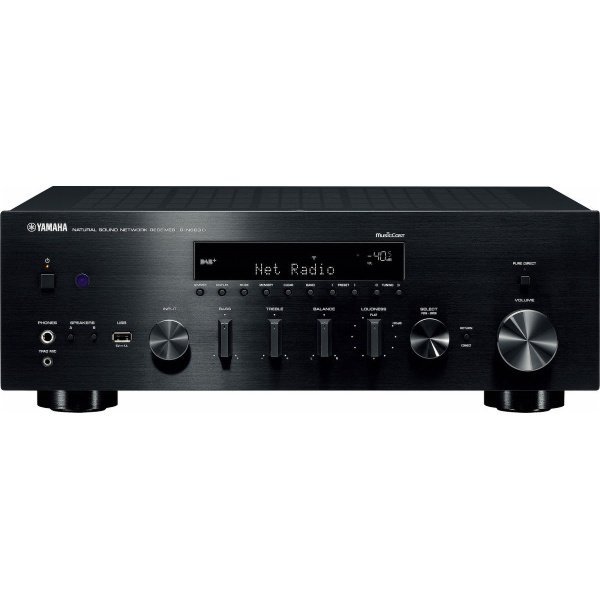

Yamaha RN803

CHARACTERISTICS

Amplification
Minimum RMS power (8 Ohms, 20 Hz - 20 kHz, 0.019% THD): 100 W + 100 W
Maximum power (8 Ohms, 1 kHz, 10% THD): 145 W + 145 W
Dynamic power per channel (8/6/4/2 ohms): 140 W / 170 W / 220 W / 290 W

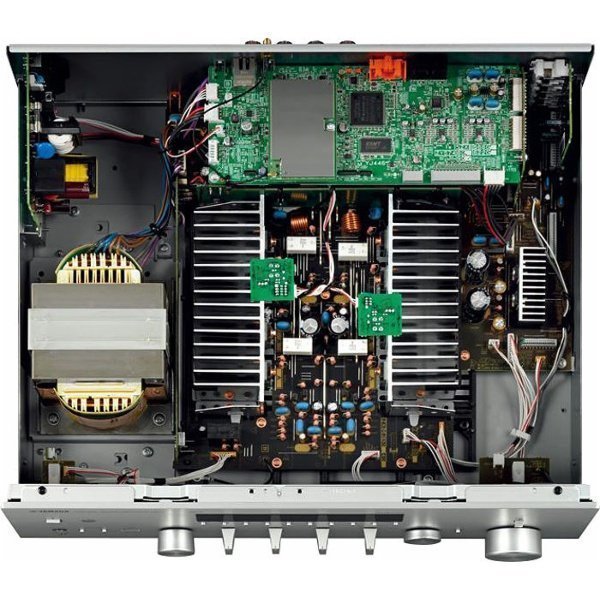

Design
Architecture "ToP-ART"
Base "Art Base"
Exclusive High Efficiency EI Transformer (505.20 volt amperes)
Audio components rigorously selected for playback of high-definition audio sources
ESS Saber 9006AS D / A Converter compatible with 24-bit / 192 kHz PCM and DSD 5.6 MHz
Digital input for TV or Blu-ray player
Bluetooth wireless audio streaming and AirPlay
Gapless function (uninterrupted playback between songs)
Continuously variable volume control
Screw Terminal Block
Speaker Selector and Terminal Blocks for Two Systems
MusicCast multiroom support (up to 10 musicCast compatible audio devices can be synchronized on the same network to play the same music at the same time.) It is also possible to create up to 10 independent groups of 10 devices, all controllable from a single smartphone or tablet )

Measures
Sensitivity / Input Impedance:
- CD etc: 200 mV / 47 kOhms
- Phono MM: 2.5 mV / 47 kOhms
Frequency response - CD, etc. (20 Hz - 20 kHz / 10 Hz - 100 kHz PURE DIRECT): 0 ± 0.5 dB / 0 ± 1.0 dB
Total harmonic distortion (20 Hz - 20 kHz):
- CD, etc. to Speaker Out: 0.019% (50 W / 8 ohms)
- Phono MM: 0.03% or less (2.5 V)
Ratio Signal / Noise (IHF-A network):
- CD, etc. (200 mV, Contour Input): 100 dB maximum
- Phono: 75 dB or more

Network
LAN
DLNA ver. 1.5 (DMP / DMR)
PC Client Function
Wireless
Wireless Direct
WPS compatible

Supported Audio Formats
MP3, WMA, MPEG4 AAC: up to 48 kHz / 320 Kbps
WAV, FLAC, AIFF: up to 192 kHz / 24 bits
ALAC: up to 96 kHz / 24 bits
DSD: 2.8 / 5.6 MHz
Spotify Connect
Napster
Deezer
Pandora
Tidal
Qobuz
Juke!
Internet radio

connectivity
Version 2.1 + EDR
Bi-directional
Supported Profile: A2DP, AVRCP
Codec Compatible: SBC / AAC

Tuner (FM)
Sensitivity 50 dB (IHF, 1 kHz, 100% Mod., Mono): 3 μV (20.8 dBf)
Signal to Noise Ratio (Mono / Stereo): 69 dB / 67 dB
40 memorable FM stations
40 memorable DAB stations

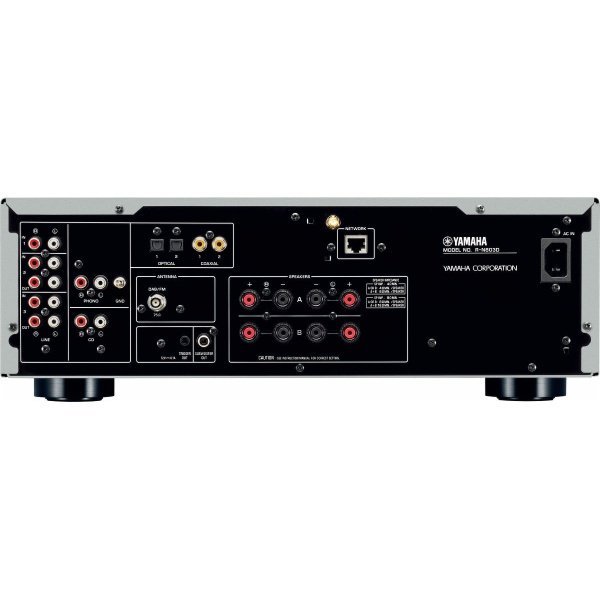

Connectors
IN
- Analog audio (CD, Line 1, Line 2, Line 3, Phono): 5 (including a MM phono)
- Optical digital: 2
- Coaxial Number: 2
- Network (Ethernet / WiFi): 1/1
- Radio antenna (FM / DAB): 1 (shared)
- USB port (front panel)
- Connector for YPAO (front panel)
OUT
- Analog audio (Line 2, Line 3): 2
- LFE for subwoofer
- Speakers: 2 (A / B, 4 terminal blocks)
- Headphones 6.35 mm: 1
- Trigger OUT

Power Specs
Power Consumption Operational: 250 Watts
Power Consumption Off: 0.1 Watt
Power Consumption with Network Standby: 1.7 Watt (Wired) / 1.8 Watt (WiFi / Bluetooth)

Supplied accessories
Manual
Remote control
Batteries (2)
Power cable
YPAO autocalibration microphone
DAB / FM Antenna Cable

Overview
Dimensions with antenna (W x H x D): 435 x 215 x 392 mm
Dimensions without antenna (W x H x D): 435 x 151 x 392 mm
Weight: 11 kg
