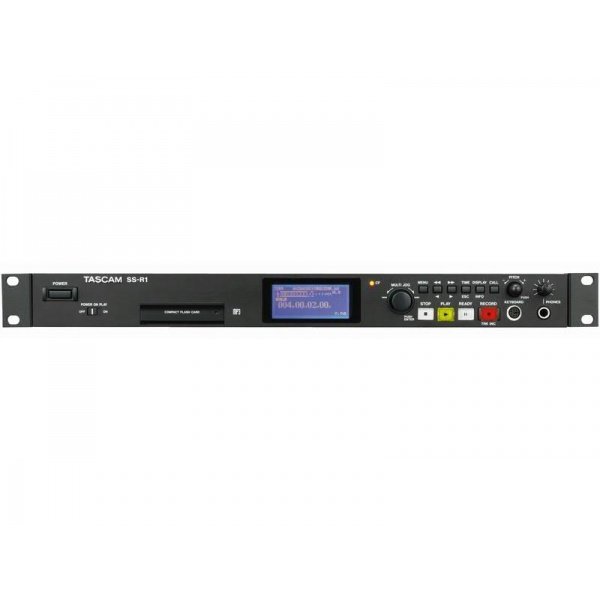

Tascam SS-R1

The SS-R1 is TASCAM's affordable single-rack-space Compact Flash recorder for the installation market. Designed for applications that previously used a cassette or MiniDisc recorder, the SS-R1 records in WAVE or MP3 formats to Compact Flash media. The recorder includes balanced and unbalanced audio inputs and outputs, RS-232 and parallel control and a wired remote control.

Also available are the SS-CDR1 adds a slot-loading CD recorder for additional recording and audio transfer functions and the HD-R1 adds Ethernet protocol and microphone inputs.

Tascam SS-R1 features
▪ Solid state recoding to Compact Flash media
▪ One-rack-space compact design
▪ Records in WAVE or MP3 format to CF Card
▪ Balanced XLR and unbalanced RCA line input and output
▪ S/PDIF coaxial digital in and out with sample rate converter
▪ Power on play
▪ Auto track increment (level or time)
▪ PS/2 keyboard input for folder/file naming and remote control
▪ RS-232C serial control
▪ DB-25 parallel control port
▪ Dimensions (W x H x D): 483 x 44 x 300 (mm)
