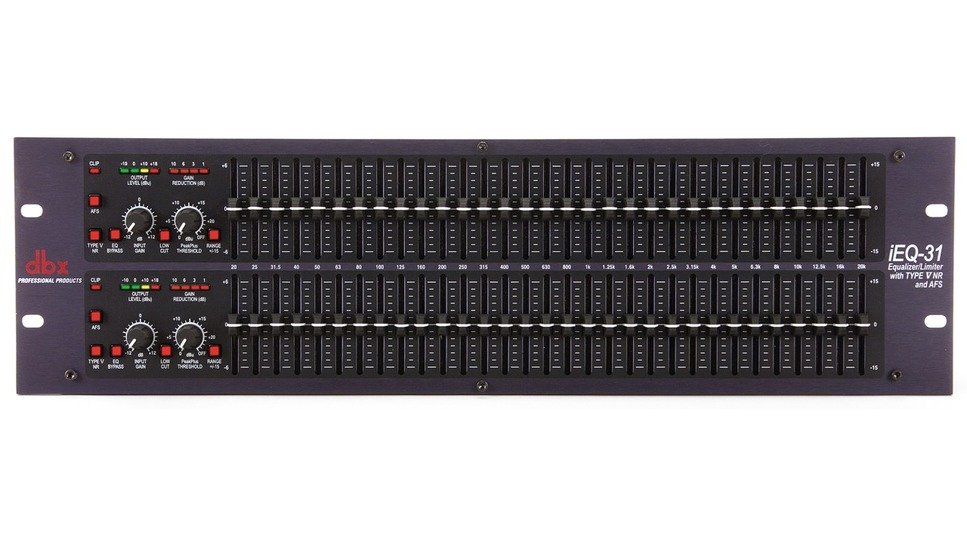

Dbx IEQ31

Digital Graphic EQ 2 x 31 bands
In this new series of iEQ graphic correctors, dbx has integrated more than 30 years of experience in the field of graphics correction. In addition to displaying unusual frequency correction specifications, the IEQ15 and IEQ31 offer new integrated features such as AFS ™ feedback suppression, Type V ™ noise reduction and PeakStopPlus limiter ™.


Frequency band 2/3 or 1/3 octave Q constant
Working range +/- 6 dB or +/- 15 dB
Low cut filter at 18 dB octave at 40 Hz
Input level adjustable to +/- 12 dB

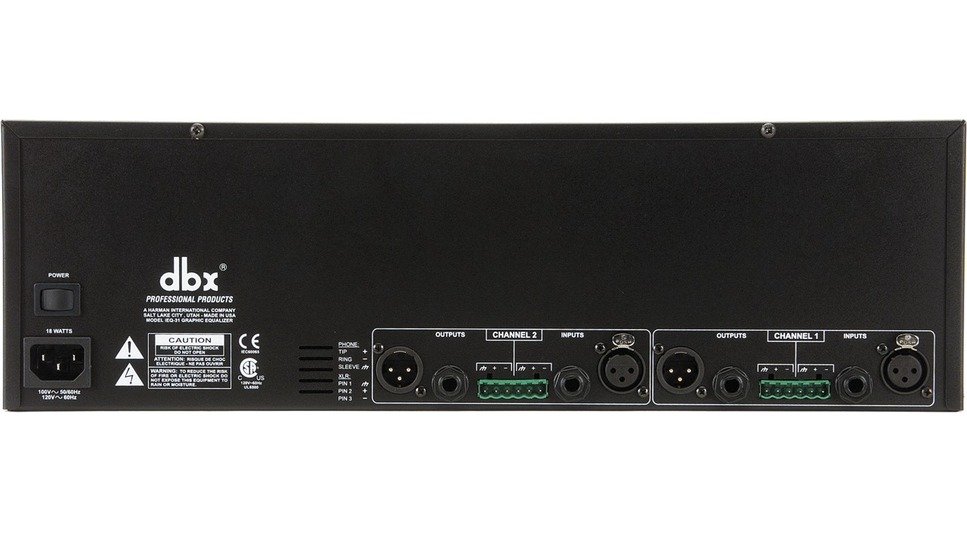

Input / output in XLR, 6.35 jack and Euroblock
Bandwidth: 10Hz to 22kHz, + 0.5 / 0.25dB
Dynamic:> 113 dB
Distortion: <0.003%, + 4dBu, 1kHz
Crosstalk: <-80dB, 20Hz to 20kHz
Resolution: 24 Bits
Sampling frequency: 48kHz
