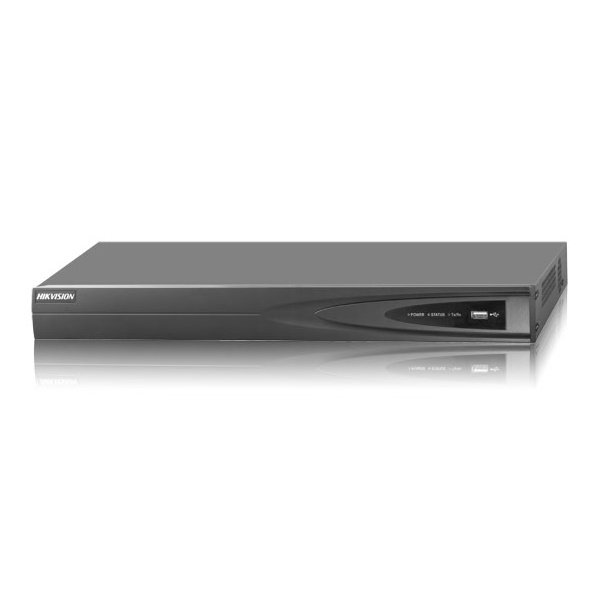

Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A Embedded Plug Play NVR

Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
  • Video Surveillance Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
  • Video Surveillance Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
Hikvision DS-7604/08/16NI-E1/4P(-E2/8P)/A  Embedded Plug  Play NVR
Hikvision
669.00inc VAT
Available on demand
Warranty: 24 months
New

Product Information

Key features
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P
resolution
• 4/8/16-ch network cameras can be connected with
25M/50M/100M incoming bandwidth
• Up to 2 SATA interfaces
• Plug & Play with up to 8 independent PoE network
interfaces
• Support network detection, including network delay,
packet loss, etc

IP video input 4-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming bandwidth 25Mbps
Outgoing bandwidth 80Mbps
Remote connection 128
Recording resolution 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame rate:
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)

Decoding

Live view / Playback
resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 4-ch@1080P

Hard disk

SATA 1 SATA interface for 1 HDD
Capacity Up to 4TB for each disk

External interface

Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
USB interface 1 × USB 2.0 and 1 × USB 3.0
Alarm in/out 4 / 1

PoE

Interface 4 independent 100 Mbps PoE
network interfaces
Max. Power 50W
Supported standard AF and AT

Others

Power supply 48V DC
Consumption(without
hard disk) ≤ 10W
Working temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 1U chassis
Dimensions(W × D ×
H)
315 × 230 × 45mm
(12.4 ×9.1 × 1.8 inch)
Weight(without hard
disk) ≤ 1 Kg (2.2 lb)
