Elipson IC6 ( Unit )

ELIPSON
IC6
100W ceiling recessed speakers

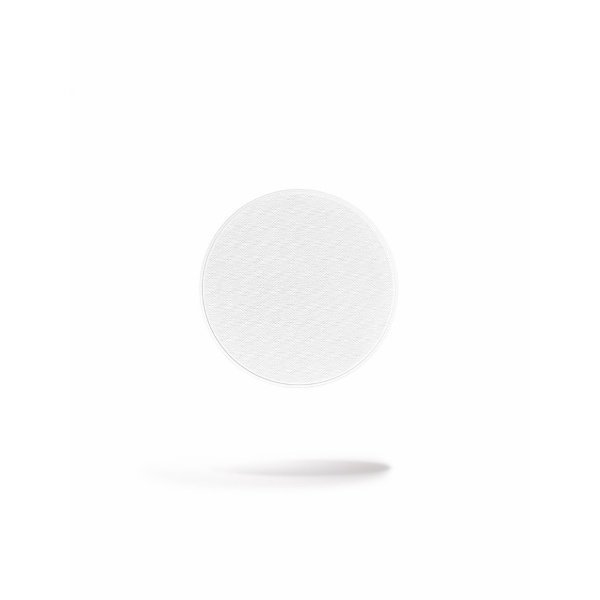

Elipson IC6 is a round recessed ceiling speaker in the Architect In series. This 2-way coaxial speaker is ideal for surround sound use in an immersive configuration.


The Elipson IC6 ceiling-mount loudspeaker is part of the Architect IN series designed for discrete sound integration. This 2-way speaker is an intermediate model compatible with the majority of hi-fi and home theater amplifiers on the market. These speakers allow full reproduction of immersive multichannel formats and add vertical dimension to your home theater installation.

Elipson's IN Series enclosures integrate with walls and ceilings for homes, communities and businesses alike. Elipson has been able to concentrate all its know-how in these compact speakers with stunning sound reproduction. The IC6 can be used in multiple configurations: conference rooms, shopping centers, amphitheatres, restaurants, shops, hotels, business premises, schools, high schools, private home-cinema rooms, integrated hi-fi systems ...

It is a coaxial 2-way speaker with a 16.5 cm mid-bass speaker in cellulose fibers and two 19 mm silk dome tweeters. It can be oriented to optimize the transmission of sound to the listening area according to its location. The supplied magnetic grid is white, it can be easily painted for a perfect integration.

The IC6 speaker has a sensitivity of 87 dB and a maximum power rating of 100 Watts. Its frequency response is between 70 Hz and 20 kHz, and makes this model an ideal choice for surround sound in a home theater system or for surround sound.


Technical sheet :

In-ceiling speaker (recessed ceiling)
2-way coaxial speaker
Medium-gravity: paper cone 165 mm, rubber suspension
Tweeter: 19 mm silk dome, 35 to 40 ° orientation in all directions
Magnetic grid ready to paint

Frequency response: 70 Hz - 20 kHz
Sensitivity: 87 dB / 1 W / 1 m
Impedance: 4 Ohms
Max power: 100 W
Cutoff frequency: 1950 Hz

Dimensions (diameter x depth): 246 x 102 mm
Cutting size (diameter): 200 mm
Minimum installation depth: 102 mm
Allow 2 to 3 cm more behind the speaker to lay a layer of rock wool to dampen the sound waves at the back of the speakers
Weight: 1.45 kg
