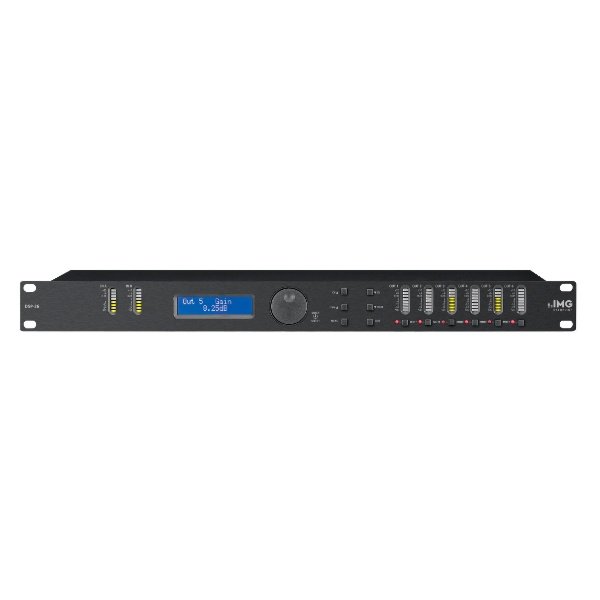

IMG stage line DSP-26

The DSP-26 is a speaker management system with modern DSP processors and digital converters.
This system combines the components: active frequency filters, parametric equalizers, delay, DMX compressor and Peak limiter in one and the same device. All functions and settings may vary for all 6 output channels. Direct use on the device or via the intuitive interface on the PC (or MAC) via the USB interface.
Digital Speaker Management System
2 analog inputs and 6 analog outputs (XLR, balanced)
DSP 64 Bit, 96 kHz Sample Rate
Dynamic range> 114 dB
Duration latency <1 ms
Fader routing of inputs to outputs
Graphical user interface, PC-Editor software
50 user presets memorizable
Remote control via USB

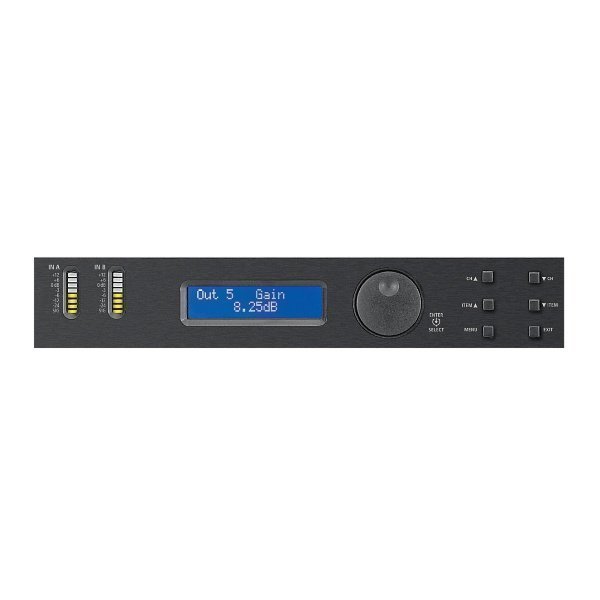

Dot-Matrix display with 2 x 16 signs

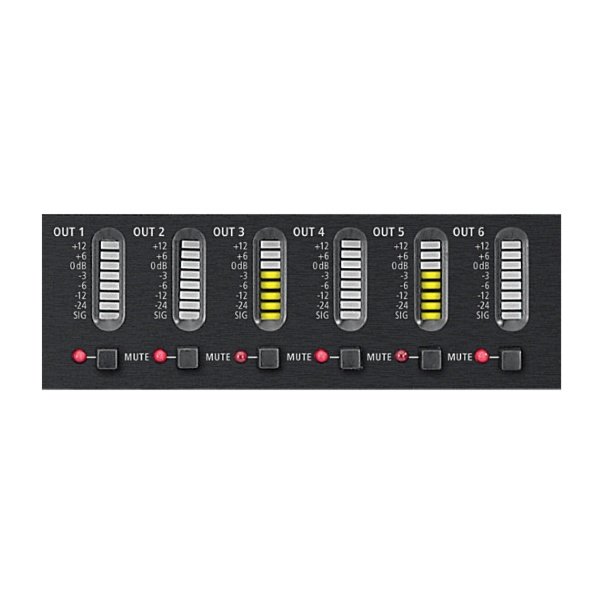

VU meter with 8 LEDs per channel, level display and Peak
19 "rack installation (1 U)
Inputs (given by channel)
Gain: -48 dB to +12 dB
Output (data per channel):
Gain: -48 dB to +12 dB
10 parametric equalizers with 8 filter types
2 frequency filters with Butterworth, Linkwitz-Riley and Bessel filters and filter types individually adjustable from 6-24 dB / oct
Delay switchable between duration (ms) and distance (m): maximum 5 ms in steps of 10 μsec or maximum 1.71 m in steps of 3,4-mm
Limit Threshold from -48 dBu to +9 dBu
Mute
Fader Mute Routing as mix for level adaptation
Switchable phase (Invert, 180 °)

Technical characteristics
 Type of digital speaker management system
 Bandwidth 10-30000 Hz
 Input signal 10 V max.
 Output signal 2 V max.
 Signal to noise ratio> 110 dB
 Distortion rate <0.005%
 Operating temperature 0-40 ° C
 Power supply via mains adapter delivered
 Dimensions 482 x 44 x 175 mm, 1 U
 Weight 1.6 kg

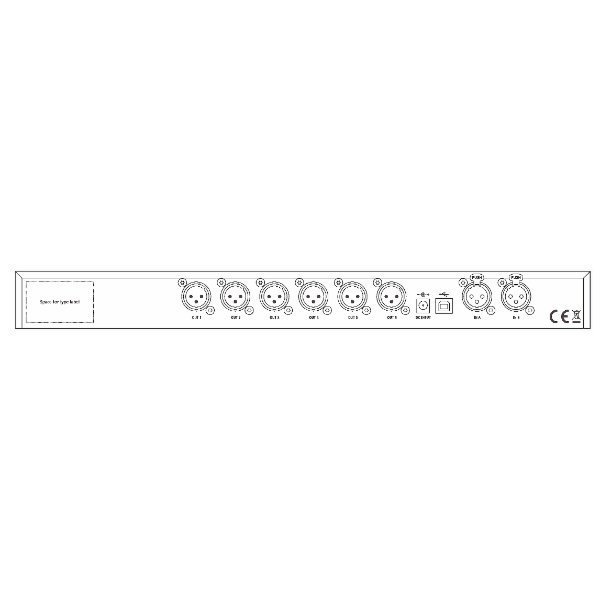

 Inputs 2xXLR, sym
 Outputs 6xXLR, bal.
 USB Features
