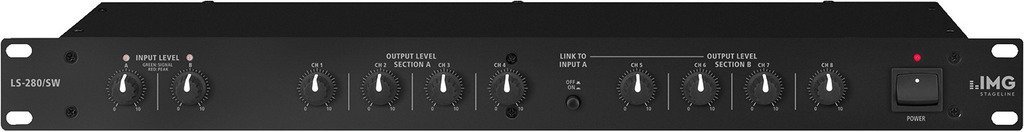

IMG stage line LS-280 / SW

8-way line distributor
IMG Stage line
LS-280 / SW

• 2 separate entrances
• Selectable operating modes:
• 1. A input on 4 outputs,
• input B on 4 outputs
• 2. entrance A out of 8 exits
• XLR connections and gain adjustment for all inputs and outputs
• Signal display and Peak for dual LED inputs


TECHNICAL SPECIFICATIONS LS-280 / SW

type separator
Frequency range 20-20 000 Hz
100 mV input signal
15 kΩ input impedance
1 V output signal
Output impedance 100 Ω
S / N ratio 70 dB, unweighted
THD <0.03%
Elig. ambient temperature 0-40 ° C
Current source ~ 230 V / 50 Hz / 10 VA
Dimensions 482 x 48 x 205 mm, 1 RS
Weight 2.3 kg

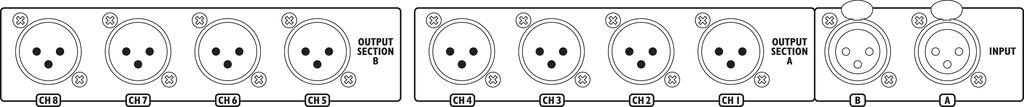

Contributions 2 x XLR
8 x XLR outputs
