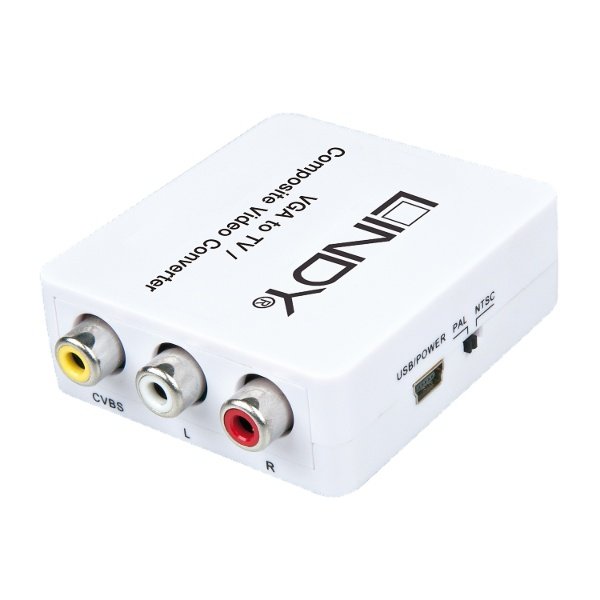

Lindy Convertisseur VGA vers TV (32544)

VGA Converter to Composite Video TV Lite

Converts VGA and audio signals from the PC to display on a TV or other devices with Composite Video input


Description

The VGA & Audio to TV Lite converter allows VGA signals from a computer to be displayed on a TV or video screen with Composite Video Input - in optimum quality.
No software required - plug & play
Compact design
Compatible with PC and game console with VGA output
Supports the transmission of audio signals
NTSC or PAL switch button
2 years warranty


Technical characteristics

Economical solution for connecting a PC or the VGA output of a game console to a display with a composite video input.

VGA (HD-15 female) and 3.5mm stereo jack female
Supports VGA resolutions up to 1600 x 1200 maximum *
Composite (RCA, yellow) and stereo (2x RCA, white and red) video outputs
Selection button for PAL (576i, Europe) and NTSC (480i, USA etc.)
Power via VGA or USB Mini-B interface *
Consumption: 2.5 Watt (5V DC regulated)

* The VGA to TV converter can be powered via the VGA interface provided that it (the source) delivers enough current. For reliable operation, we recommend that you use the supplied USB A / Micro-B cable to power the converter via a USB socket or USB power supply Art. 73350.
* Please note: do not set your VGA resolution above 1024x768. The signal must be reduced to NTSC / PAL resolutions, which always leads to a loss of quality because Composite Video does not support higher resolutions!

Content of the delivery:
VGA to TV converter
USB A / Mini-B power cable, 0.8m
Manual
