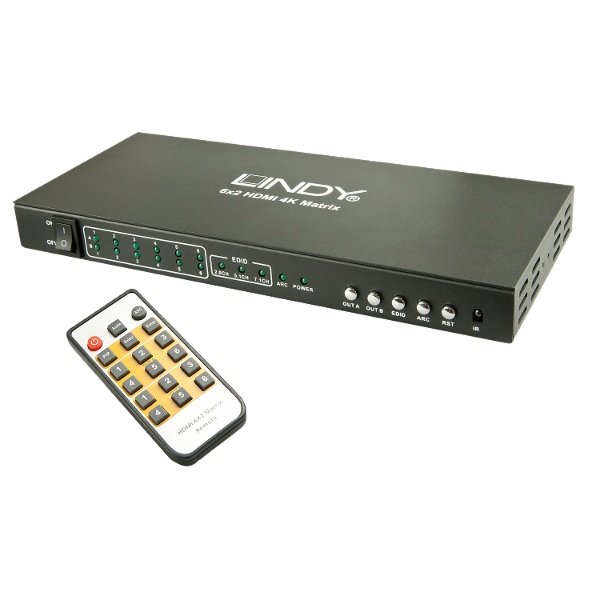

Lindy Switch Matrix 6x2 UHD 4K HDMI 2.0 with PiP and ARC functions

The Matrix 6x2 HDMI 2.0 LINDY switch freely switches 6 HDMI sources to 2 HDMI output ports. The PiP (Picture-in-Picture) function displays all other signals in thumbnail mode for faster selection using the supplied remote control.

Supports HDMI 2.0
Supports HDCP 2.2 on input port 1 and on both outputs, ports 2 through 6 support HDMI 2.0 with HDCP 1.4
Supports UHD resolutions up to 4K Ultra HD, up to 4096x2160 @ 24Hz (2160p24), up to 3840 x 2160 @ 60Hz in YCbCr 4: 2: 0 8bpc or 3840 x 2160 @ 30Hz, YCbCr 4: 4 : 4 8bpc, as well as Full HD 1080p and 3D
HDR not supported
PiP - display as thumbnails for resolutions up to Full HD for easy switching and to keep an eye on other signals
Input 6 supports the MHL 2.0 function via active MHL cable
Output A supports ARC - Audio Return Channel
Switching via buttons and IR remote control
Each input can be switched at any time on each output, even in parallel with other
Supports cable lengths of 10m at input and 10m

Technical characteristics

Switch Matrix 6x2 UHD 4K HDMI 2.0 with PiP and ARC functions

Compatible with HDMI 2.0, HDCP 2.2, CEC 1.4, ARC, MHL 2.0 and DVI
Supports UHD resolutions up to 4K Ultra HD, up to 4096x2160 @ 24Hz (2160p24), up to 3840 x 2160 @ 60Hz in YCbCr 4: 2: 0 12bpc or 3840 x 2160 @ 30Hz, YCbCr 4 : 4: 4 8bpc, as well as Full HD 1080p and 3D
Supports DVI-D Single Link graphics resolutions up to 1920 x 1200
Supports Multi-channel Digital Audio, High Definition Audio, Dolby Digital True HD and DTS-HD

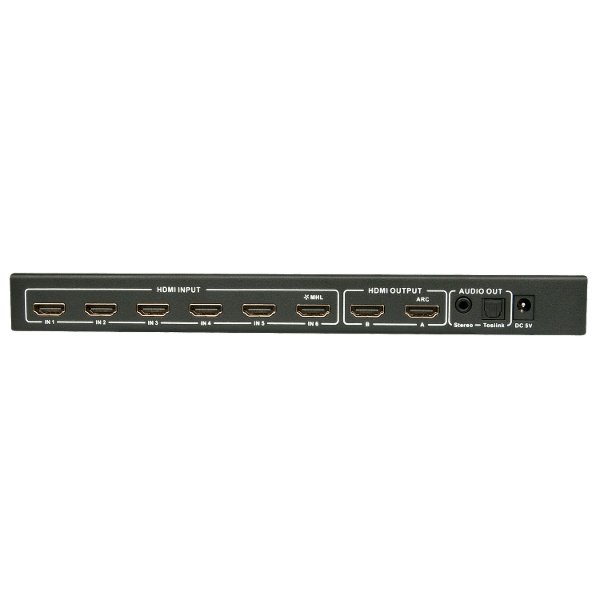

Inputs: 6 x HDMI A female
Outputs: 2 x HDMI A female
Input 6 supports the MHL 2.0 function for active MHL cables
Output A supports ARC audio via Toslink connection
Output A also supports the ARC audio function for analog stereo signals via a 3.5mm female jack as long as the HDMI ARC signal does not contain compressed audio signals
DVI device connections possible via DVI-HDMI adapter cable
Supports cable lengths of 10m at input and 10m at output, at 2160p with cables LINDY Super Long Distance or GOLD
Switching via buttons or remote control provided
PiP - Picture-in-Picture function for displaying thumbnails of signals in resolution up to Full HD 1080p for easy switching or to keep a visual signal
LED for channel indication on the housing
External multi-country power supply 5VDC 2A, with mains adapters Euro, UK, USA, AUS / CN
Maximum Power Consumption: 10W
Dimensions: 26 x 12 x 3 cm
Weight 1,1kg with packaging
