Description

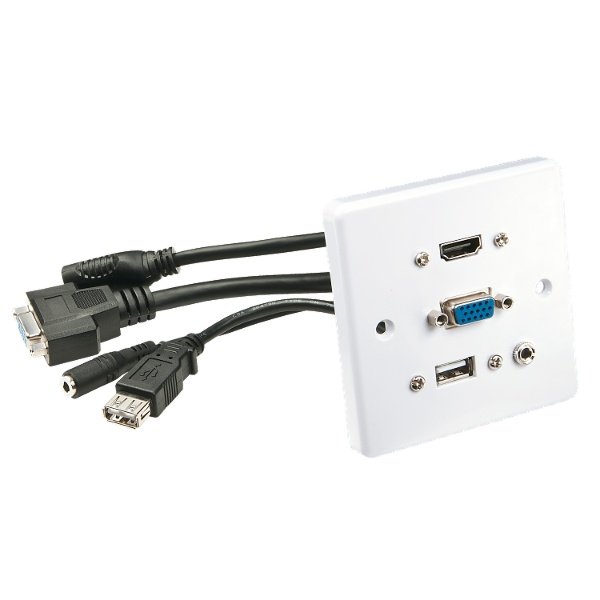

This specific AV wall plate provides a set of connections and attaches to an 86x86mm case or case (with suitable cutouts)
The spacing of the two screws is 60mm, suitable for wall boxes 86x86mm
Plastic front, white, 86mm x 86mm x 35mm, with two fixing screws
Reserve of 30 mm minimum depth to be provided at the rear

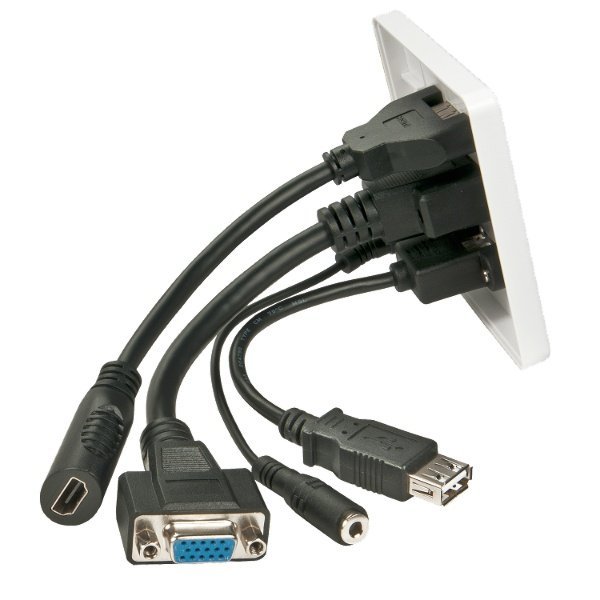

HDMI Type A female front and short cord inside HDMI Type A female. Can be combined with active cables or LINDY HDMI extenders / repeaters
VGA HD15 female front and short cord inside HD-15 female
USB Type A on the front panel and short cord Type A Buchse (note the maximum length of the USB cable segments which is 5m! Extension possible with an active USB extension)
3.5mm stereo audio jack on the front and 3.5mm jack on the inside
