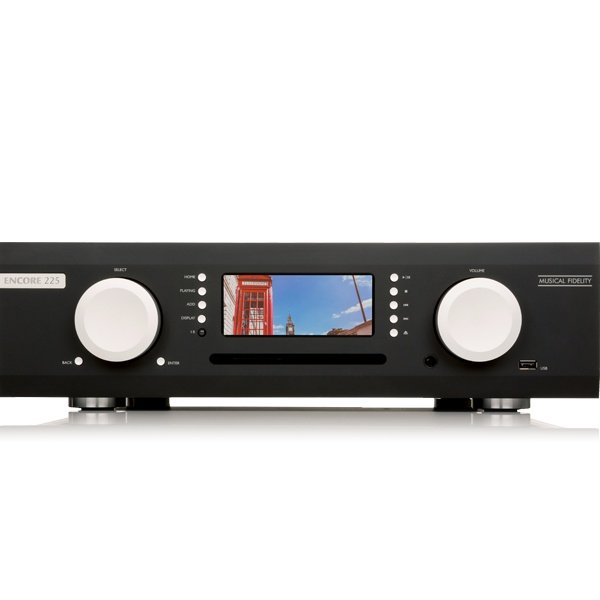

M6 Encore 225 - Overview
The Encore 225 is a complete audio solution allowing you to keep all your music in one place. It accepts almost any conceivable analog or digital audio source. It is also compatible with many network speakers, such as Sonos. There is a very clear, large, high resolution full colour display so you can see what’s going on.
- Encore in brief

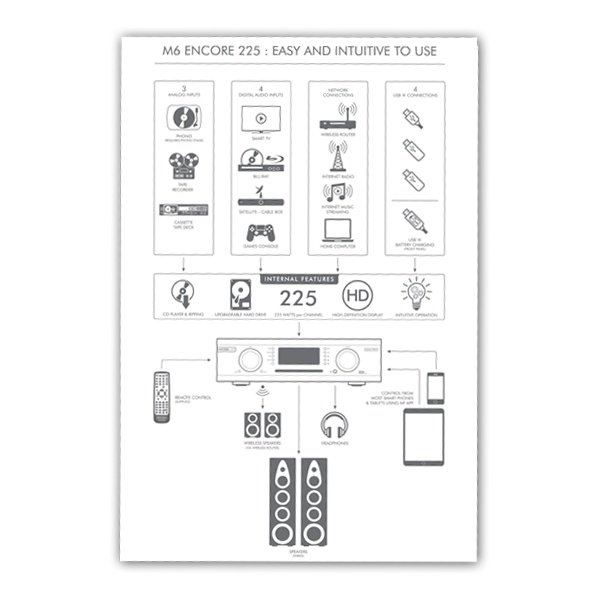

Easy and intuitive to use
Huge connectivity
Upgradeable 1TB internal storage for over 2500 CDs (bit perfect ripping from CD drive)
Power amplifiers are the same as those in the M6si
Compatible with many network speakers, such as Sonos
Large, high resolution, full colour display
Control with either IR handset or Apps ( both Apple and Android)
Dual core 64bit Intel CPU - as future proof as we can make it
32 Bit 384k DAC
Amplifier
Power output: 225 Watts per channel into 8 Ohms
THD (+ noise): <0.007 % typical 20Hz - 20 kHz
Signal to Noise Ratio: >107dB ‘A’ - weighted
Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

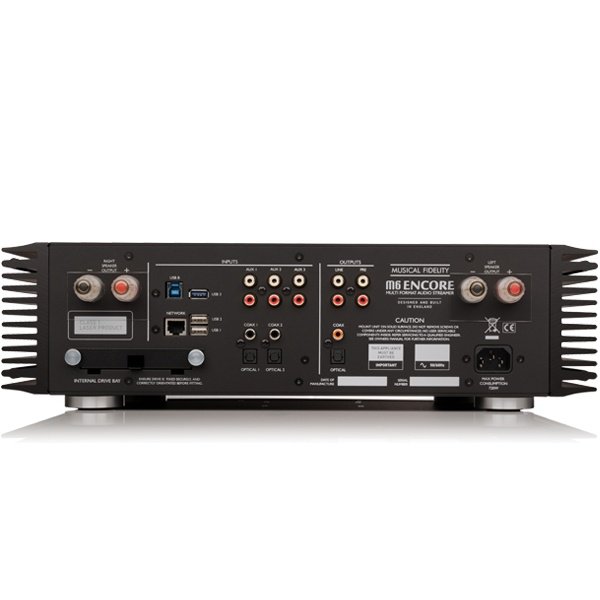

Inputs
3 x Line Level RCA 300mV nominal 2V typical up to 7V rms
2 x optical S/PDIF 24 bit inputs up to 192kHz
2 x coax S/PDIF 24 bit inputs up to 192kHz
1 x USB 3.0 type ‘A’ connector
1 xUSB 3.0 type “B” connector (for future expansion)
3 x USB2.0 type ‘A’ connector (1 front, 2 rear)
10/100/1000 Base-T Ethernet connector
Outputs
1x line level FIXED 2.0V @ 0dBFS (300mV rms nominal, >6V rms max)
1x line level PREAMP variable outputs (>6V rms max) (Preamp gain, line input to PREAMP outputs is 4.5x (13dB) at maximum volume)
Headphone output suitable for headphones impedance 8 ohms to ∞. (Headphone output features independent volume setting)
Speaker outputs 1 pair 4mm banana plugs per channel
1x optical S/PDIF 24-bit output up to 192kHz
1x coax S/PDIF 24-bit output up to 192kHz
Internal storage 2.5” 1 TB SATA II hard disk (included) or SSD (future upgradeable)
General
Dimensions - WxHxD (mm): 440 x 125 x 400
Weight (packed): 23
