Pioneer DJ DJM-S9

DESCRIPTION

The new DJM-S9 two-way mixer for Serato DJ gives DJs the possibility
To customize their hardware with a fast, accurate and customizable crossfader as well as
Performance and effect buttons configurable to their preference. The DJM-S9 also
A plug-and-play integration, four Serato DJ tracks, DVS control, rhythmic effects
Directly into the device, two built-in sound cards and an input switch on the top to facilitate
The transitions between DJ.
This new mixer has been designed to suit all styles of deejaying and to resist
To the most vigorous scratches. The patented magnetic crossfader is both robust and highly
DJs can customize the Feeling Adjust and Cut Lag functions, as well as the curve and
Dampers of the faders. The multi-color performance pads provide instant access to the loops,
Cue points, samples and rolls. DJs may also decide to reconfigure the pads to assign their
Favorite features of Serato DJ.

MAIN FEATURES OF THE DJM-S9

Crossfader Magvel Fader Pro sturdy and responsive for ultra-precise scratches
The patented Pioneer Magvel Fader Pro has all the features needed to ensure a
Reliable, whatever the style of deejaying:

• A very high response

The low latency fader ensures a fast and accurate response, and DJs can change the load
With the Feeling Adjust button. The shock absorbers of the faders are proposed in three
Materials, and DJs can choose the level of resistance they prefer.

• Robust construction for excellent durability

The DJM-S9 is built to last, with its contactless magnetic crossfader and metal fixings
Resistant to intensive use over a long period without any loss of reliability.

• Configurable curve and Reverse function

DJs can adjust the characteristics of the crossfader curve according to their styles and
Needs, and use the Reverse function to move the Cut Lag from the bottom up.

• Multi-color performance pads for more tactile performance

The DJM-S9 features large performance pads designed to provide a fast and accurate response. The
DJs can use the 16 multi-color pads - eight on each track - to trigger and manipulate
Functions like Hot Cue, Roll, Slicer and Loop. Or else they can choose to assign to other pads
Functions of Serato DJ. The organic electroluminescent screen indicates which mode is applied, and DJs
Can assign pad colors to the Hot Cues in Serato DJ for even stronger visual help.

• Customizable buttons provide access to a variety of effects on the unit and
In Serato DJ
Inspired by the inexhaustible legacy of the DJM-909 mixer, the DJM-S9
Choice from a comprehensive range of high quality effects. With six rhythmic effect buttons, six buttons
Serato DJ effects and two effects banks, DJs have a choice of unprecedented effects in their hands.

• 15 built-in rhythm effects with additional parameter control: Six dedicated buttons trigger the famous Echo, Delay, Reverb, Flanger, Phaser and Trans effects in phase with the BPM. DJs can replace these rhythm effects with other built-in rhythm effects, and assign six additional rhythmic effects to the second effect bank.

• 55 Serato DJ effects: DJs can assign the six buttons, as well as a bank
Additional, their favorite Serato DJ iZotope effects.

• Filter Effects: A high / low pass filter on each channel allows DJs to manipulate effects, which DJs can also choose to swap with other filters and effects, such as Dub Echo, Noise, or Pitch.

• Release Effects: Use the large lever type RMX-1000 to initiate effects briefly, lock them, or exit quickly from your arrangements.

• Two USB sound cards, can be operated on four tracks and switched on
Above the device

The DJM-S9 is the ultimate mixer for plug-and-play use of Serato DJ, with its two USB sound cards, allowing two DJs to chain each other seamlessly.

The input switch is located on the top of the mixer, which avoids having to grop at the back of the unit between the sets. DJs can swap between the four Serato DJ tracks and, as the DJM-S9 is DVS-compatible, it's ideal for Serato DJs who prefer to use CDJs or turntables.
In addition, DJs can record directly into the software during performance.

MAIN TECHNICAL SPECIFICATIONS

- Software: Serato DJ

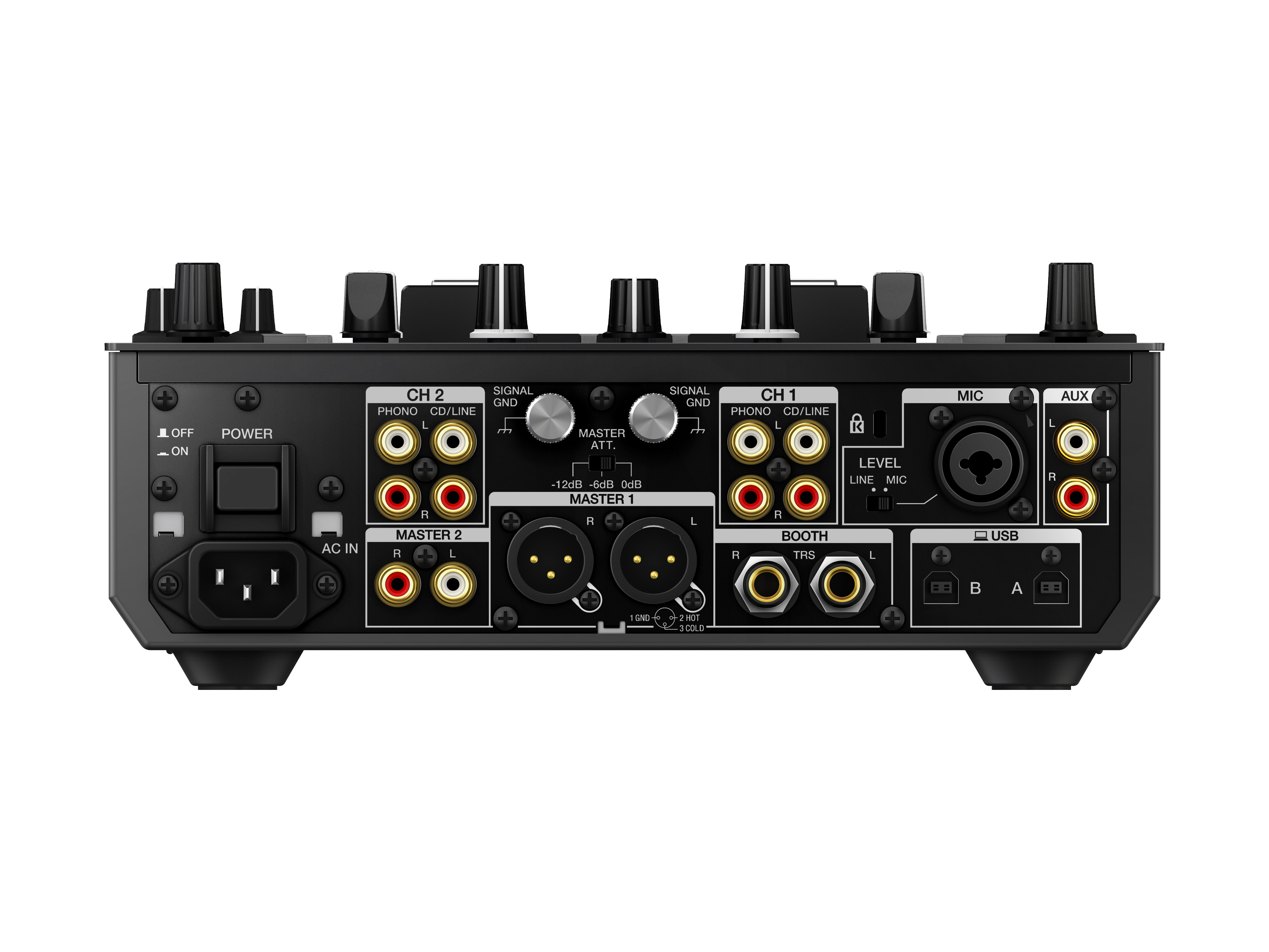

- Ports of entry:

• CD / Line x 2 (RCA)
• Phone x 2 (RCA)
• MIC x 1 (XLR & Jack TRS 6.35 mm)
• AUX x 1 (RCA)

- Output ports:

• Master x 2 output (RCA x 1, XLR x 1)
• Return Output x 1 (TRS 6.35mm Jack)
• Headphone output x 2 (TRS 6.35 mm jack, 3.5 mm stereo mini jack)

- Other ports: USB x 2

- Frequency response: 20 Hz ~ ~ 20 kHz

- Total harmonic distortion: 0.005% or less

- S / N Ratio: 104 dB (PC)

- Maximum dimensions (W X H X D): 267 x 107.9 x 407.3 mm

- Weight of the device: 4.6 kg
