Pioneer DJ DJS-1000

DISCOVER THE SAMPLER DJ AUTONOME DJS-1000

- AN INTUITIVE AND ERGONOMIC INTERFACE
- POWERFUL PERFORMANCE FUNCTIONS, TO IMPROVE SOUND AND SINGLE PHRASES

MAIN CHARACTERISTICS OF THE DJS-1000

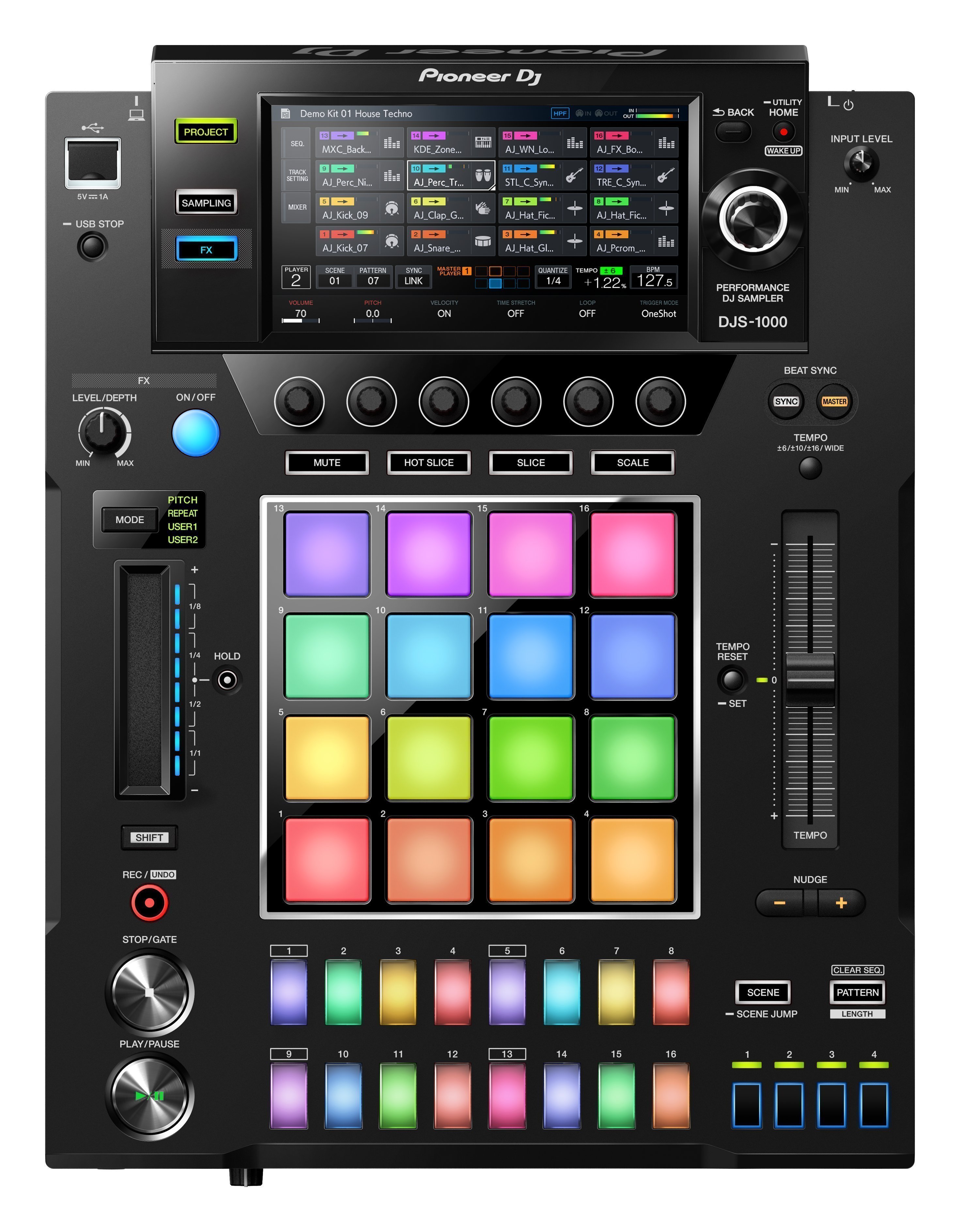

1. Intuitive User Interface
Step Sequencer: Easily create a new groove by tapping the 16
large multicolored input step keys. Thanks to the changing colors
keys, you can keep an eye on the sequence information on
each piece.
Performance Multicolored Pads: Use the 16 large rubber pads
to start the songs to which you have assigned samples and loops.
Each pad is equipped with multi-color backlighting and
highly accurate velocity - so you can lower and increase
volume by pressing more or less strongly on the pads.
Touch Strip: By simply touching the Touch Strip, you can change
quickly pitch while using the Pitch Bend feature, or play a
bearing using the Note Repeat option. Customize
settings for even more creative possibilities.

2. 7-inch color touch screen
Touch the LCD screen to instantly access the screen of your choice:
Home screen: See the sample details assigned to each song
thanks to the colors and icons of instruments that are linked to the pads
Sequence Screen: See the sequence pattern that is being played
Mixer screen: Adjust the volume balance of each song.

3. Accurate synchronization with various external systems and devices
In addition to synchronizing with MIDI devices, the DJS-1000 includes
Beat Sync function, which can synchronize one set per beat / measure with one
Song on a CDJ-2000NXS2 or XDJ-1000MK2 installation
using a PRO DJ LINK link. Use the tempo slider and buttons
adjustment to manually adjust tempo and rhythm position
quickly, exactly as you would on a turntable.
TECHNICAL OVERVIEW FAQ SUMMARY DESIGN TABLE COMPARATIVE TARGETS

4. Powerful performance features
Live Sampling: Easily sample input sounds and use them
immediately as individual pieces. The sampling sounds are
automatically synchronized with the sequence to be played in a loop, for
be able to launch it directly in a live remix. You can sample
any input source, including audio from a turntable
vinyl, through your mixer.
Effects: Easily add various effects to your songs by changing their
live tone. You can apply effects such as Echo, Reverb
and Filter to individual songs, a group of songs, or
the whole of the pieces.

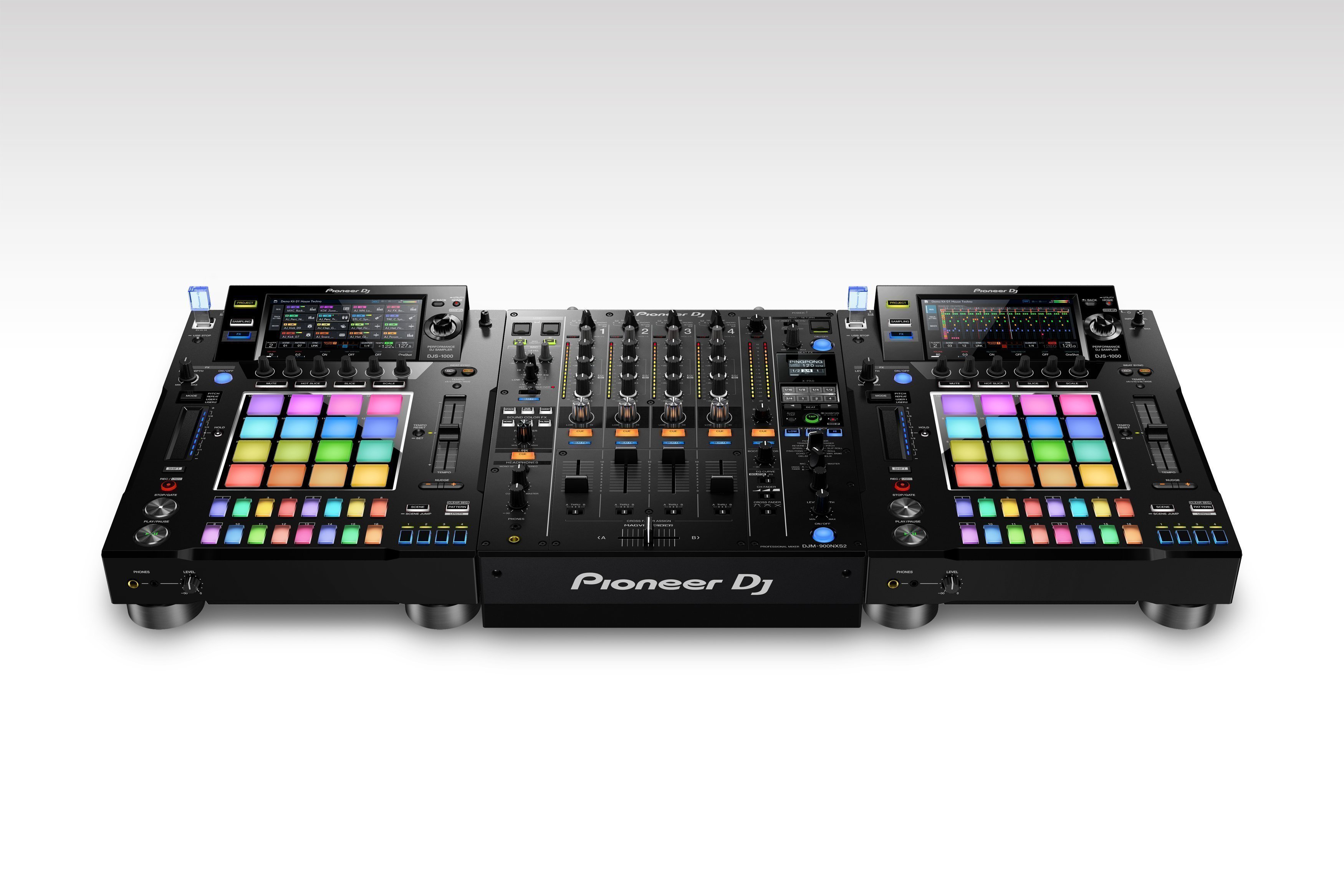

5. Perfectly designed for DJ cabin
The DJS-1000 is designed to match the
CDJ-2000NXS2 and the DJM-900NXS2, creating a perfectly smooth unit
in the DJ booth.

6. Other features
Compatible with USB devices - Easily manage your projects and
samples
Over 2500 Integrated Loopmaster Samples - Start Playing With
the DJS-1000 as soon as it leaves the box
Compatible with the DJS-TSP Project Creator2 - Easily create
project files and SCENE3 on a PC / Mac
Compatible with project files created on the TORAIZ SP-16.

MAIN FEATURES

PREVIEW
• Intuitive user interface.
• Step sequencer.
• 7-inch color touch screen.
• Live Sampling.
• x16 RGB Pads.
• PRO DJ LINK.
• Add the DJS-1000 to your DJ setup and
you can intuitively create sounds and
sentences upstream of your set, or
direct, then sequence and make
loops as you wish.

TECHNICAL CHARACTERISTICS

Supported media types USB storage devices (keys, external hard drives, etc.)
Supported file types WAV, AIFF (16 bit / 24 bit, 44.1 kHz)
USB storage systems FAT, FAT32, HFS +
Input ports INPUT x1 (L / MONO and R, JACK TS 6.3 mm)

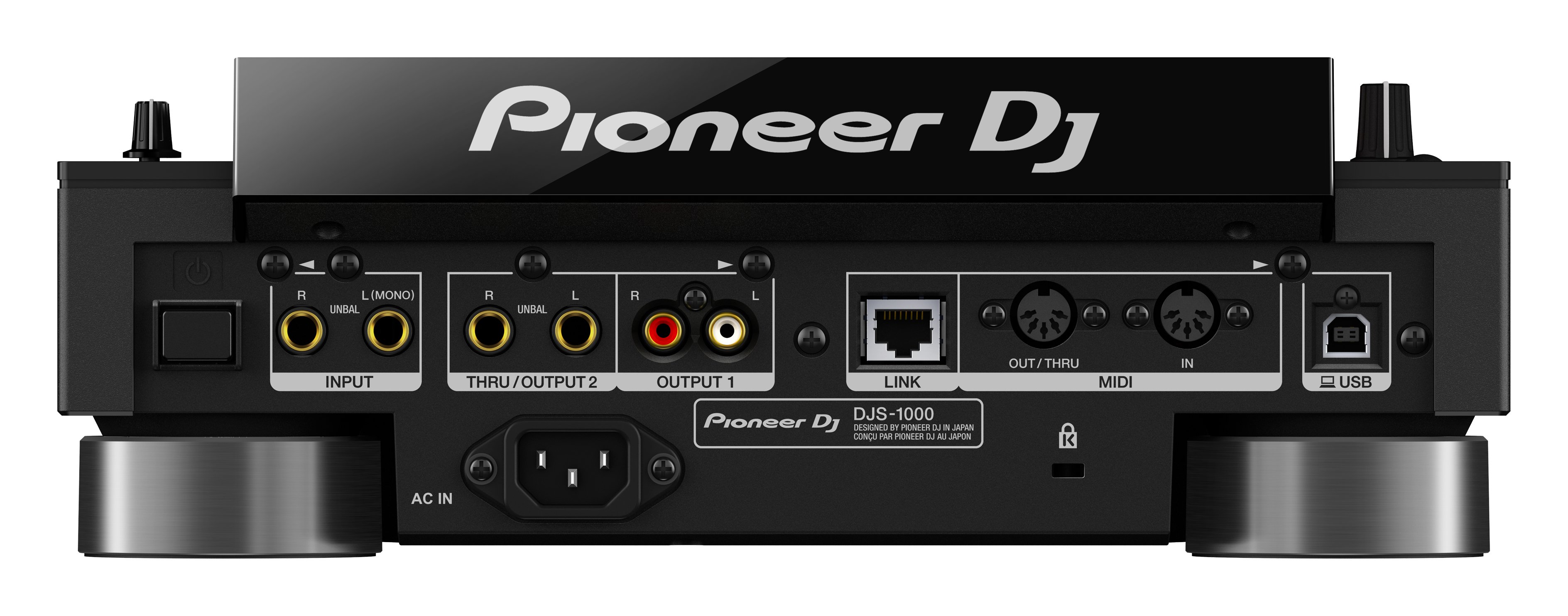

Output Ports
OUTPUT 1 x1 (RCA)
THRU / OUTPUT 2 x1 (JACK TS 6.3 mm)
PHONES x2 (6.3 mm stereo jack, 3.5 mm stereo mini jack)
Other ports
USB (Type A) x1, USB (Type B) x1
MIDI IN (DIN 5P), MIDI OUT / THRU (DIN 5P)
LINK x1 (LAN 100Base-TX)
AC power 110-220V (50 Hz / 60 Hz)
Power Consumption 20W
Maximum external dimensions (W x D x H) 320.0mm x 421.6mm x 110.1mm
Weight 5.4
