Teac TEAC TN-570 Noir

Specs

Design
Turntable 33 and 45 revolutions / minute
RIAA phono preamplifier integrated (compatible with cells MM)
USB port for scanning discs
Belt drive
adjustable counterweight
adjustable antiskating
Solid acrylic tray
MDF frame and marble
DC motor technology "P.R.S3"

Measures
Type: External Belt transmission
speeds: 33.3 and 45 rpm / min
Speed ​​accuracy: ± 0.33%
Wow and flutter <0.1%
signal / noise ratio:> 67 dB or more (A-weighted, 20kHz)

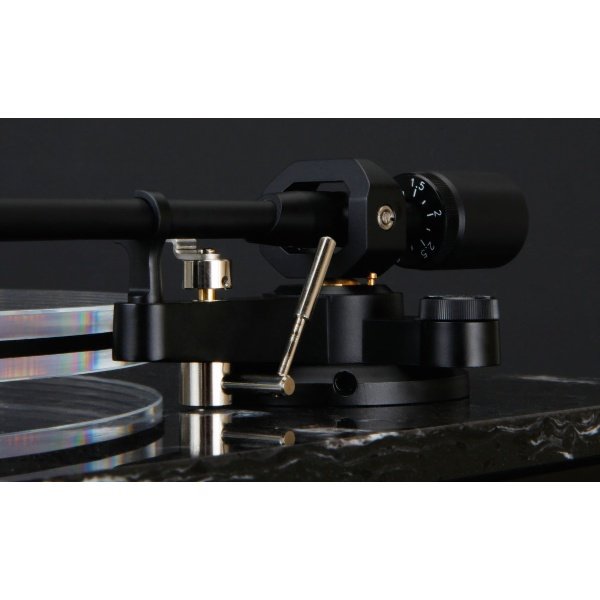

Arms
S-arm
Arm length: 223 mm
peak pressure variation range: 0-5 g
Cell recommended weight: 15 to 23 g (including cell door)
Overhang: 18 mm
Tracking error: ± 3 °
Arm height adjustment range: about 6 mm

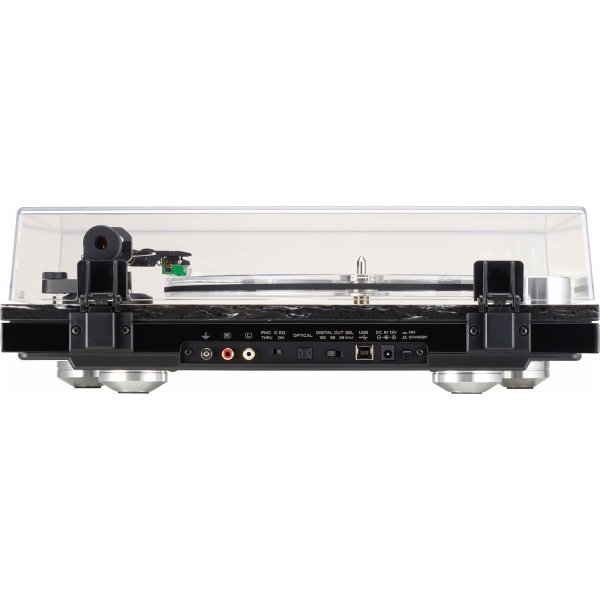

Connectors
1x stereo output RCA PHONO / LINE
1x USB output (Type-B) to PC (16 bits - 8 / 11.02 / 16 / 22.05 / 32 / 44.1 / 48kHz)
1x Optical TOS-link (24 bits - 48/96 / 192kHz)

supplied accessories
1x mat for plate (black)
1x centering 45s
1x Counterweight
1x cell door
1x cell AT100E VM
1x Plateau
1x cover the plate
2x Rubber feet for the deck lid
2x Hinges
1x RCA audio cable
1x AC Adapter

Overview
Size of the plate (W x H x D): 420 x 120 x 340 mm
Plate dimensions (D): 300 mm
Weight: 8 kg

Audio-Technica AT100E VM cell
MM cartridge - Mount 1/2 - Elliptical
Frequency response: 20 Hz to 20 kHz
Channel separation: 27 dB at 1 kHz
Balancing channels: 1.5 dB
Output voltage: 4.5 mV at 1 kHz, 5 cm / sec
vertical viewing angle: 23 °
Force prop: 1.0 to 1.8 g (1.4 g standard)
static compliance: 35 x 10 -6 cm / dyne
Dynamic compliance: 8 x 10 -6 cm / dyne (100 Hz)
Material of coils: Copper PCOCC
Recommended Load Impedance: 47 Ohms
Recommended Load: 100-200 pF
Inductor 360 mH at 1 kHz
Cartridge weight: 6.5 ± 0.2 g
Weight with cell door: 10 g (screws, nuts and son included)
Diamond Life: 300 hours
