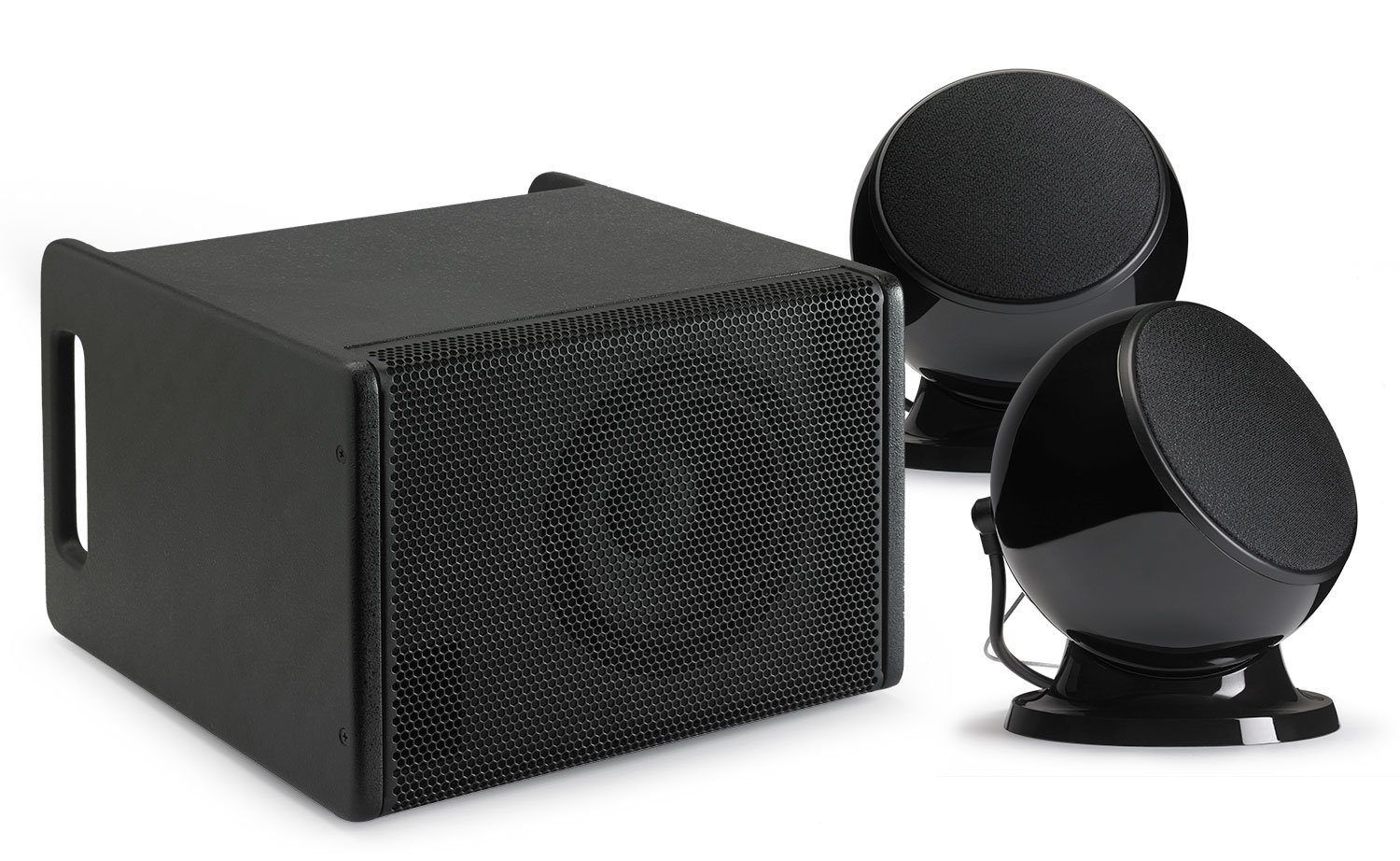

Audiophony OHO Systema1b

Technical data

SATELLITES:
• Power output : 50 W RMS
• Frequency response : 100 Hz - 25 KHz
• Sensitivity (1 W@1m) : 89 dB
• Nominal impedance : 8 Ohms
• Boomer : 3"
• Tweeter : 1" compression
• Connector : Mount-integrated terminal
• Dimensions : 115 mm diam
• Weight : 0.7 kg

SUBWOOFER:
• Power output : 150 W
• Frequency response : 52 - 200 Hz
• Max SPL (@1m) : 120 dB
• Boomer : 8"
• Dimensions : 360 x 250 x 250 mm
• Weight : 10.3 kg

AMPLIFICATION:
• LF : 1 x 150 W
• HF : 2 x 40 W RMS / 4 Ohms
• Sub phase controller 0/180
• Sub and Master adjustable levels
• Connectors : 2 x Combo XLR/Jack and 2x RCA inputs

SATELLITES TERMINAL
• Indicators : Power/Signal/Clip
• Protections : Short-circuits/Thermal and limiter
• Convection cooled (totally silent)
