Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m

Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
  • Accessory Video Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
  • Accessory Video Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
Lindy HDMI and IR Cat.6 Extender Kit with Local HDMI Port - 50m
Lindy
89.00inc VAT
Available on demand
Warranty: 24 months
New

Product Information

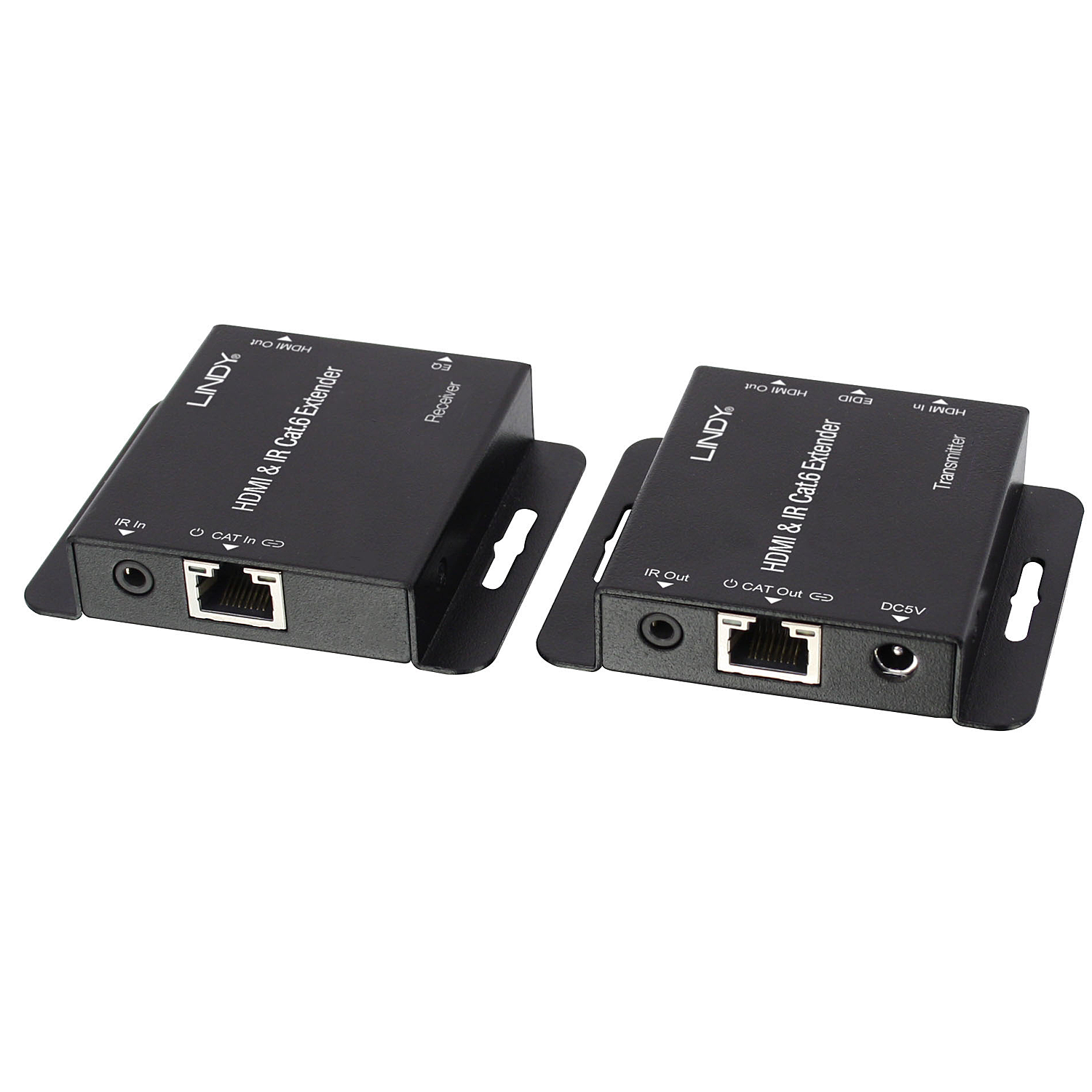

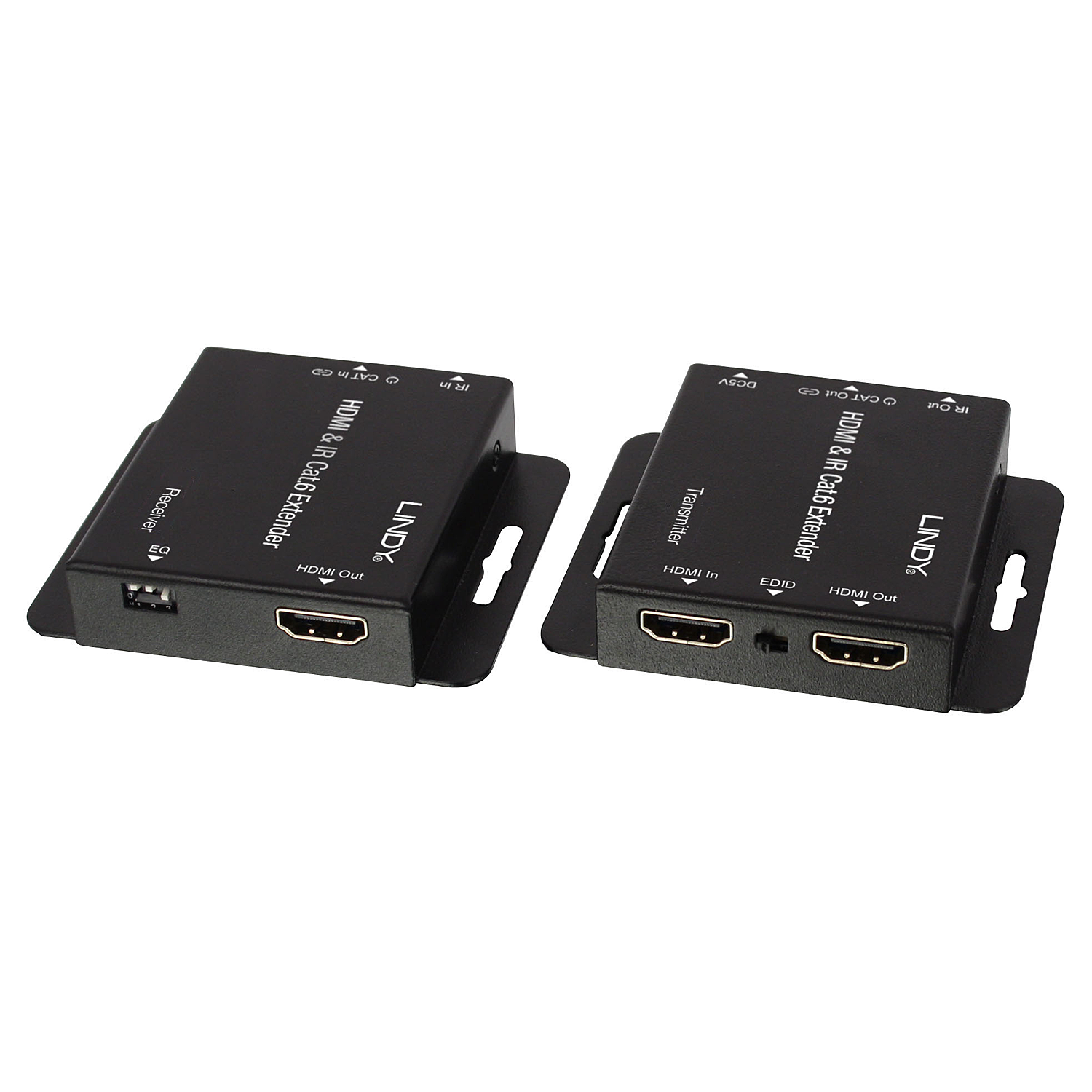

HDMI & IR Cat.6 Extender Kit with Local HDMI Port, 50m


Extender (consisting of a transmitter and a receiver) transmitting HDMI and IR remote control signals via Cat.5e / 6 cable over a distance of up to 50m - Transmitter with local HDMI port



This HDMI extender is easy to install for handling HDMI and IR remote control signals. Transmitter and receiver are connected directly by a Cat.6 RJ45 cable (not included). It is suitable for home use but also in professional areas, for resolutions up to Full HD 1080p and 3D.



- Extender for HDMI 1.4 & IR signals up to 50m via a single Cat.6 cable
- Supports resolutions up to Full HD 1080p, 3D included
- Transmitter with local HDMI output for control monitor
- Requires only one power supply - The receiver is powered by the transmitter
- 2 years warranty


Note: Please use Cat.6 installation cable (large diameter) for long distances.


Technical characteristics

The HDMI & IR extender Cat. 6 is a Plug & Play solution with excellent value for money and is easy to install. It transmits HDMI signals up to 50m using a single Cat link cable. 6 (not included).

For remote control of the source, IR signals with an extended frequency range (20-60 kHz) are relayed from the receiver to the transmitter, an IR sensor cable and an IR transmitter cable are provided.



The transmitter has an HDMI output for simultaneous display on a local control monitor. Ideally, both connected displays should have the same display characteristics. A selector on the transmitter allows you to select EDID data from the local or remote display for transfer to the HDMI source.



The Power over Cat feature. 6 (PoC) provides power to the receiver via the cable connecting the transmitter to the receiver, this allows to use a single power source. In addition to the PoC function, the compact design of the extender allows it to be placed in tight spaces, such as the back of a flat screen for example.



* Please note: The maximum cable lengths of 50m are only possible with the use of cables, connected directly between transmitter and receiver, Cat.6 single-wire installation of high quality. The implementation of other types of cables or the addition of intermediate connections reduces the maximum range. The link in the product description will help you find the right cables.



Content of the delivery

HDMI & IR Cat.6 Extender with Local HDMI Output
Multi-country power supply 110 ... 240VAC / 5V DC ~ 1A with Euro, US, UK & AUS / China power adapters, DC round plug: 5.5 / 2.1mm
IR transmitter cable
IR controller cable
Manuel LINDY


Technical specifications

Transmits HDMI 1.4 (HDCP included) & IR signals via RJ45 Cat5e / Cat6 cable
Connection via Cat.5e / 6/7 cable up to 50m (we recommend using Cat.6 single-core installation cable)
Local HDMI monitor output for simultaneous display of signals
Supports resolutions up to Full HD 1080p 60Hz (4: 4: 4 @ 8bpc, 4: 2: 2 @ 12bpc)
Full HD 1080p24 3D support according to HDMI 1.4 specifications
Audio Formats: LPCM, DTS Digital, DTS HD, Dolby Digital & Dolby True HD
PoC (Power over CAT6) functionality for powering the receivers through the transmitter
Supports extended IR frequencies 20 - 60kHz
Maximum lengths of HDMI cables: 3m input / 3m output
EDID data: selector for choosing between EDID of local or remote monitor
Adjustable EQ for adaptation to the length of the connecting cable
Transmitter Connectors: HDMI Type A In, 1x Cat.X Out, 3.5mm IR Out, DC Power Plug
Receiver Connectors: HDMI Type A Out, 1x Cat.X In, 3.5mm IR In
Power: 5W max
Operating temperature: 0 to 40 ° C, to be used indoors
Storage temperature: -20 to 60 ° C
