Kimex Motorized lift support for 37 -65 LED LCD TV screen

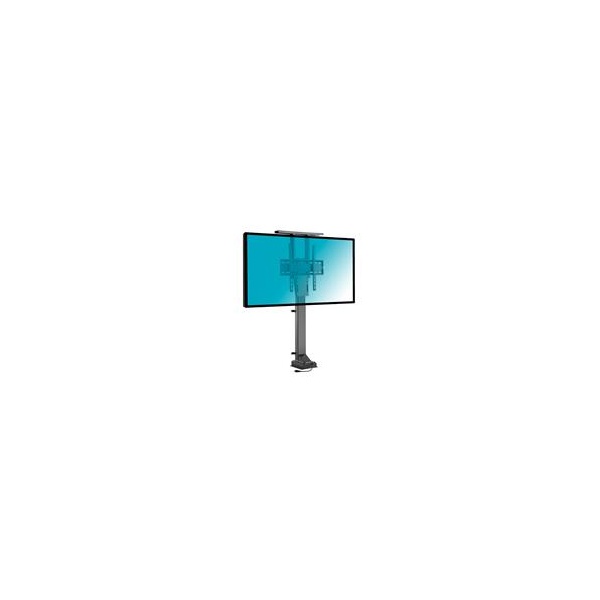

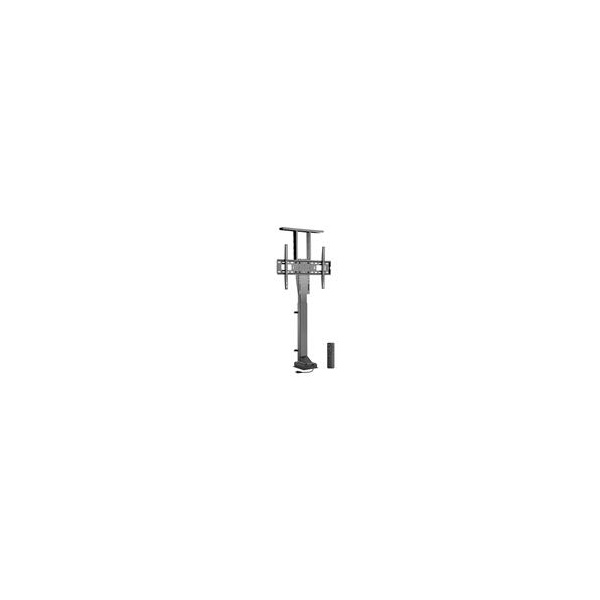

Motorized lift support for 37 "-65" LED LCD TV screen

Motorized lift support for 37 "-65" LED LCD TV screen, Floor or ceiling installation, VESA compatibility 200x200 min, 600x400 max, Maximum weight allowed 50 kg, Color black.

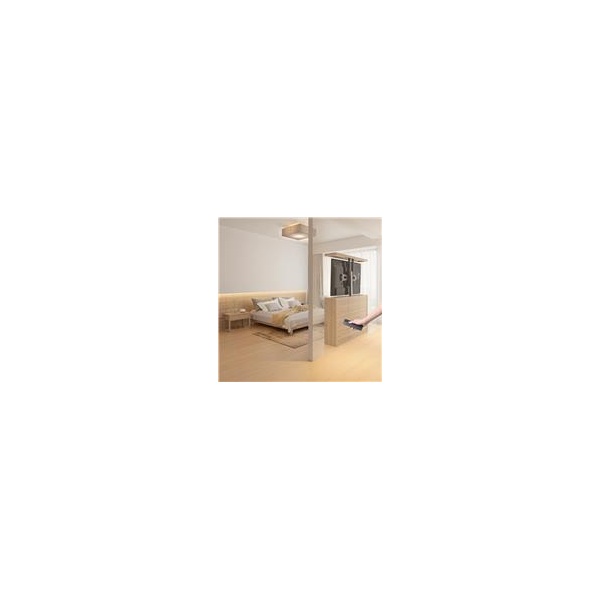

Designed as a modern innovative integration solution, this lifting support is intended to be installed in a cabinet to take out your television and put it away after use thanks to a remote control.

For its installation, it has three fixing locations, one on the ground, the other two at the back of the column, which guarantee maximum security. Then simply place the screen on the support without having to use any mounting tool, its maintenance is ensured by two solid anti-detachment screws. The upper cover plate provided in addition to the support allows you to attach a finishing hatch for the best aesthetic rendering.

Once installed, activate your screen to the desired level using the remote control and close it after use. For optimal comfort, this support allows you to adjust and memorize the engine stop level, the screen thus stops at the position determined for each use.

With these characteristics, the KIMEX 018-6064 motorized support is proving to be an innovative and functional solution recommended for individuals as well as for professionals in audiovisual integration and the hotel industry.

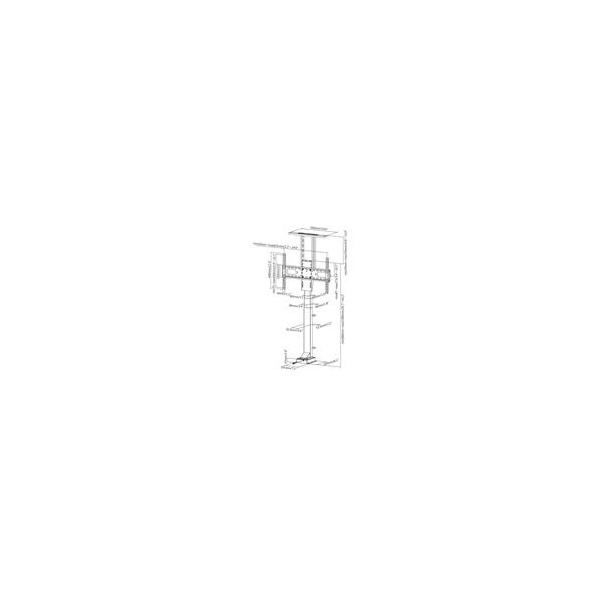

Dimensions:
Height adjustable from 68 cm (low position) to 158 cm (high position),
Motor stroke length: 90 cm,
Motor cycle time: 30 seconds,
Adjustment of the motor stops from the remote control,
Length of the power supply cable: 1.80 m.

Floor fixing plate: 19.1 x 20.5 cm,
Three ground fixing points on each side of the plate,
4 wall mounting lugs: spacing from left to right, 13 cm / spacing from top to bottom, 40 cm,
Distance between the wall and the screen: 11.5 cm.

Possibility of fixing a hatch on the support located above the screen for the aesthetic finish,
This support is adjustable in height thanks to its two arms to adapt to the size of the screen and your configuration,
Dimensions of the upper covering support: 50 x 7 cm.


Product specifications

Designation Motorized lift support for 37 "-65" LED LCD TV screen
Family WALL MOUNTS
Sliding motorized function
Floor / Ceiling Installation
TV compatibility 37´´ - 65´´ (94-165 cm)
VESA compatibility (mm) 200x200, 300x300, 400x200, 400x300, 400x400, 600x400
Max load 50 kg
Distance / wall 11.5 cm
Height / ground Adjustable: Stroke length 90 cm
Cable routing Yes
Other features Power supply via 250V, 2.5A mains socket
Black color
Manufacturing material Steel, aluminum, plastic
Product weight 16 kg
Accessories included Complete hardware
2 years warranty
