Yamaha VXL1B16

YAMAHA PRO AUDIO
VXL1B-16

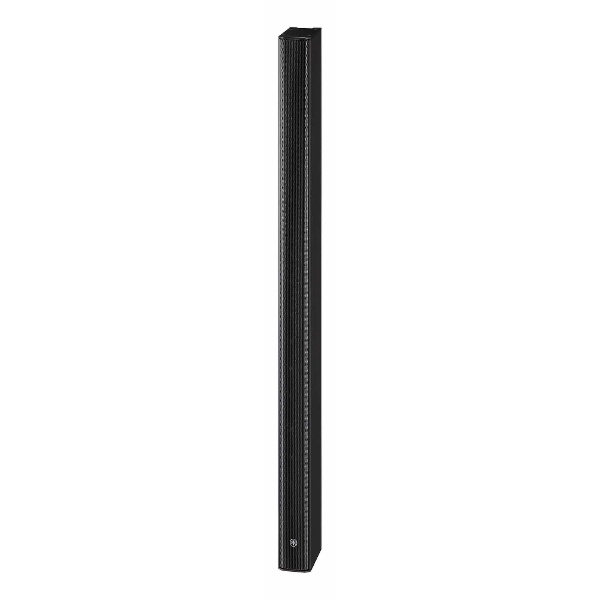

Slim line array speaker with 16 x 1.5” drivers

General technical data


System type Amplified speaker, broadband, bass reflex

Frequency range (–10 dB) * 1 80 Hz to 20 kHz
Coverage (–6 dB) Horizontal: 170 °
Vertical: 25 ° (+ 12.5 ° - –12.5 °)
Effective coverage (–10 dB) Horizontal: 180 °
Vertical: 30 ° (+ 15 ° - –15 °)
Max. Postcode (peak) * 2 IEC noise at 1 m NPA 102 dB (when using PoE + (IEEE 802.3at)
Transducer
Component Cone 1.5 "(3.75 cm) × 16
Housing
Enclosure material Extruded aluminum enclosure
Card material
upper / lower ABS (UL94-5VB)
Metal grid Perforated aluminum (t = 1 mm)
Opening rate: 55%

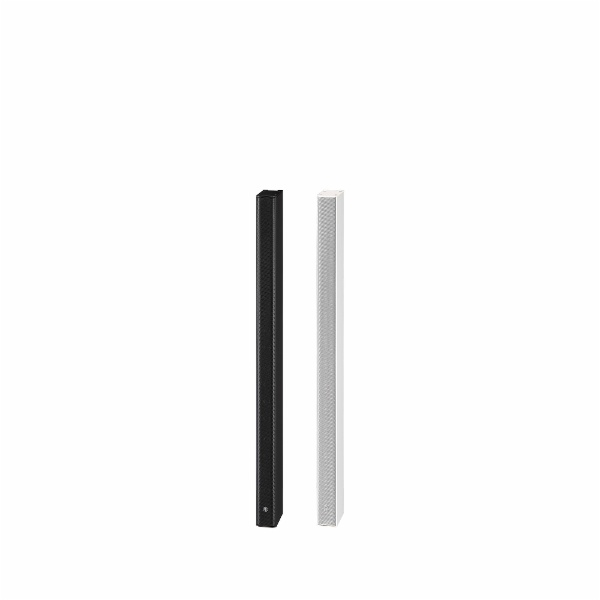

VXL1B-16P finish: black paint (approximate value: Munsell N3.0)
VXL1W-16P: white paint (approximate value: Munsell N9.0)
Magnetic shield No
Dust and water resistant No

* 1: Half space (2 p)
* 2: Measured at 2 m; the value displayed is the value converted at 1 m (frequency range: 100 Hz to 10 kHz)


General technical data

Dimensions (W × H × D) Speaker only: 54 × 1120 × 104 mm
With the support provided: 54 × 1120 × 111.5 mm
Net weight 5.0 kg
Amplifier
Class D amplifier type
Nominal power
Dynamic 15 W (PoE + (IEEE 802.3at)), 6 W (PoE (IEEE 802.3af))
Continuous 15 W (PoE + (IEEE 802.3at)), 6 W (PoE (IEEE 802.3af))
Cooling Natural convection
Protection
Systems processing
loudspeakers Clipping limitation, full power protection
Amplifier Overcurrent protection, over temperature protection, overvoltage lock, DC detection, clock detection
Power supply Overload protection, overvoltage protection, undervoltage lockout
RJ-45 connector (Dante) × 1
Power consumption at rest 3 W
Power consumption 1/8 (pink noise) 6 W (PoE + (IEEE 802.3at)), 4.3 W (PoE (IEEE 802.3af))
Power required PoE + (IEEE 802.3at), PoE (IEEE 802.3af)
Accessories included Mounting bracket × 2, support base × 2, safety cable × 1, machine screw (M5 × 10) × 2, template × 1,
Manual

The content of this manual applies to the latest technical characteristics known on the date of publication of the manual.

For the most recent version of the manual, go to the Yamaha website and download the relevant manual file.
