Goldring 1012GX

Goldring
1012GX
Hi-Fi MM Cell

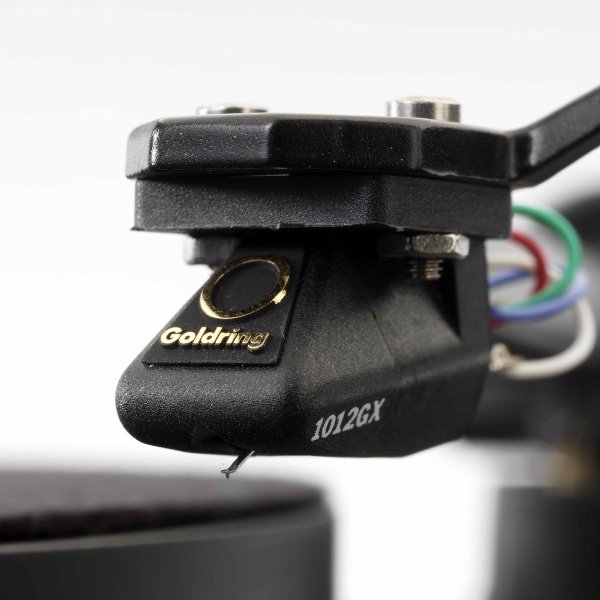

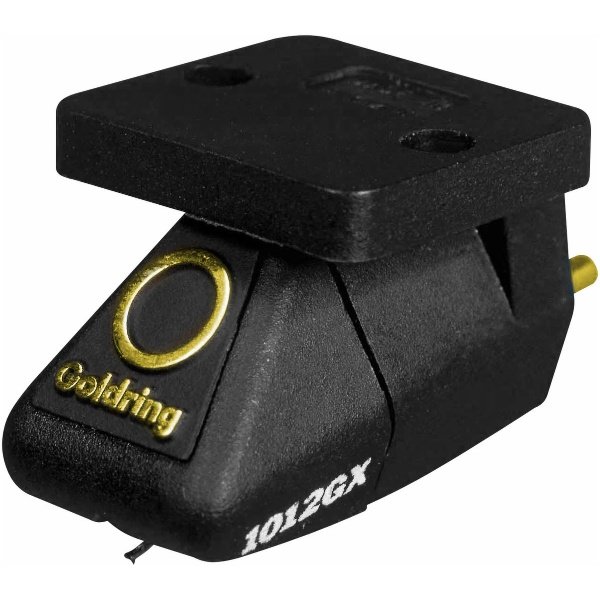

The Goldring 1012GX recording cartridge uses the famous Gyger-2 diamond stylus. It is a type of fine line that gives smooth extended high frequencies, low distortion and reproduces a very detailed and dynamic sound. Advanced polishing of diamond tips provides excellent tracking capability and reduces disc wear. The 1012GX represents exceptional value for money and has become one of Goldring's most popular cartridges.
Replacement stylus:
1012GX - D12GX


Characteristics

Response frequency 20 Hz - 20 kHz +/- 3 dB
Channel balance less than 2 dB @ 1 kHz
Channel separation greater than 25 dB @ 1 kHz
Sensitivity 6.5 mV +/- 1.5 dB, 1 kHz @ 5 cm / sec
Static compliance 20 mm / N
Dynamic compliance @ 10 Hz
10 mm / N
0.45 mg equivalent peak mass
24 ° vertical tracking angle
Gyger II stylus radius
Replaceable stylus type
Load resistance 47 kΩ
Load capacity 150 - 200 pF
Internal inductance 570 mH
Internal resistance 660 Ω
Mass of the cartridge 6.3 g
Mass cartridge (fasteners included)
7.6 g
0.5 "(12.7mm) mounting center
Play weight 1.5 - 2.0 g (1.7 g nom.)
