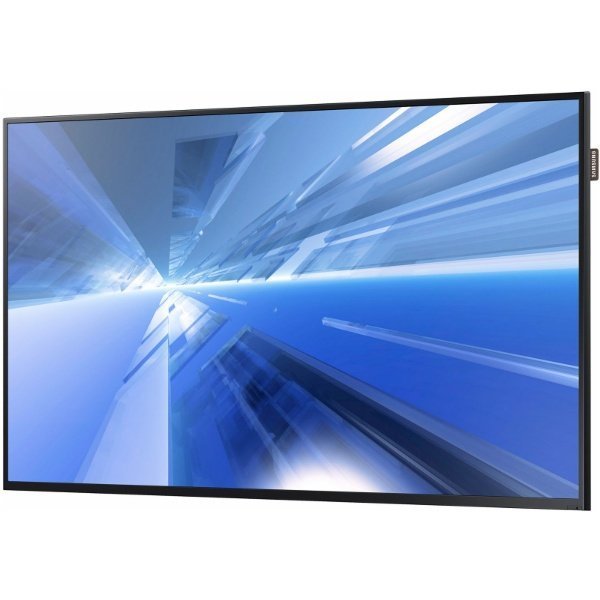

Samsung LED monitor DC55E Full HD

SAMSUNG
LED monitor
DC55E Full HD


Attract the customer with optimized 16/7 services
Capture the attention of customers with an optimal presentation of your information on Samsung SMART DCE monitors. The DCE series of digital billboards is distinguished by superb image quality, a powerful 350 nit brightness (330 nits for the 32-inch model) and high reliability in use 16 hours a day, 7 days a week. With their sleek, streamlined design designed for sustainable use in stores, fast food restaurants, offices and meeting rooms, DCE displays present your information in a visually appealing, timely manner and with breathtaking image quality.

Easily and instantly control your screens installed at various locations
The MagicInfo Lite solution with built-in media player allows you to manage content remotely via the MagicInfo network server. It is possible, from a PC, to remotely program the display of multimedia contents stored on a USB stick connected to the back of the screens of the DCE series.
The connection to the MagicInfo server also makes it possible to remotely monitor and manage the screens. Device data, content display schedules, network data tracking, alarms and various control elements are available remotely, even without having a direct view of the screens.

Automatically display contents from a USB connection or internal memory
The MagicInfo Lite Player uses state-of-the-art technology to view a wide range of content at any time, such as videos, artwork and photos, either on demand or pre-programmed. Customers can easily view files stored in the large internal memory or on various external devices connected to the built-in USB port. The alphabetical classification of the elements of the MagicInfoSlide folder of the USB memory facilitates their management as it makes the use of programmers superfluous.

Easy-to-manage digital display with multifunctional connectivity
Different interfaces make it easy to connect the screen to other digital billboards. Screens are not only equipped with the most common connections used by businesses, but also support a large number of different source devices. Available connections include HDMI, DVI, D-Sub, Component & Composite and RS-232C inputs for ultra-flexible connectivity. In addition, the DCE series provides for the connection of an SBB reader, which transforms the system into a multi-functional display solution.


Screen
Screen size 139.7 cm (55 ")
LED screen type
Screen resolution 1920 x 1080 pixels
Brightness of the screen 350 cd / m²
HD Full HD type
Touchscreen
Response time 6 ms
5000: 1 contrast ratio
Mega Contrast Dynamic Contrast Ratio Marketing Name
Horizontal viewing angle 178 °
178 ° vertical viewing angle
Number of colors displayed 16.78 million colors
No pixel 0.63 x 0.21 mm
Active display area (l x h) 680.4 x 1209.6 mm
Horizontal scanning area 30 - 81 kHz
Vertical scanning frequency 48 - 75 Hz
16: 9 aspect ratio
Color palette 72%
Technical details
LED Direct-LED LED Floodlight
audio
Built-in speakers
Number of speakers 2
RMS rated power 20 W
Design
Digital signage flat panel design
Product color Black
VESA assembly
VESA standard 400 x 400 mm
Frame width (bottom) 1.5 cm
Width of the frame (side) 1.05 cm
Frame width (top) 1.05 cm
performance
service hours (hours / days) 16/7
connectivity
Ethernet / LAN
Number of HDMI ports 2
DVI port
VGA input ports (D-Sub) 1
Number of LAN ethernet port (RJ-45) 1
Number of DVI-D ports 1
Composite video input 1
Integrated audio connector (L, R) 1
USB 2.0 version
Number of USB ports 1
RS-232C
Power
Typical power consumption 115 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (in standby mode) 0.5 W
Power consumption (off) 0.5 W
Energy efficiency class B
Thermal Dissipation 2047.8 BTU / hr
Environmental conditions
Operating temperature 0 - 40 ° C
Operating humidity level 10 - 80%
Weight and dimensions
Width 1230.6 mm
Depth 49.9 mm
Height 706.9 mm
Weight 14,7 kg
Packaging information
Remote control
Cables included Sector, Series
Warranty card
Batteries provided
Quick Start Guide
Package width 810 mm
Depth of the package 148 mm
Height of the package 1348 mm
Package weight 19.2 kg
Other features
Clock clock frequency 148.5 MHz
Power consumption (max) 176 W
Technical details
Number of products included 1 piece (s)
Additional information
3 Years Warranty
